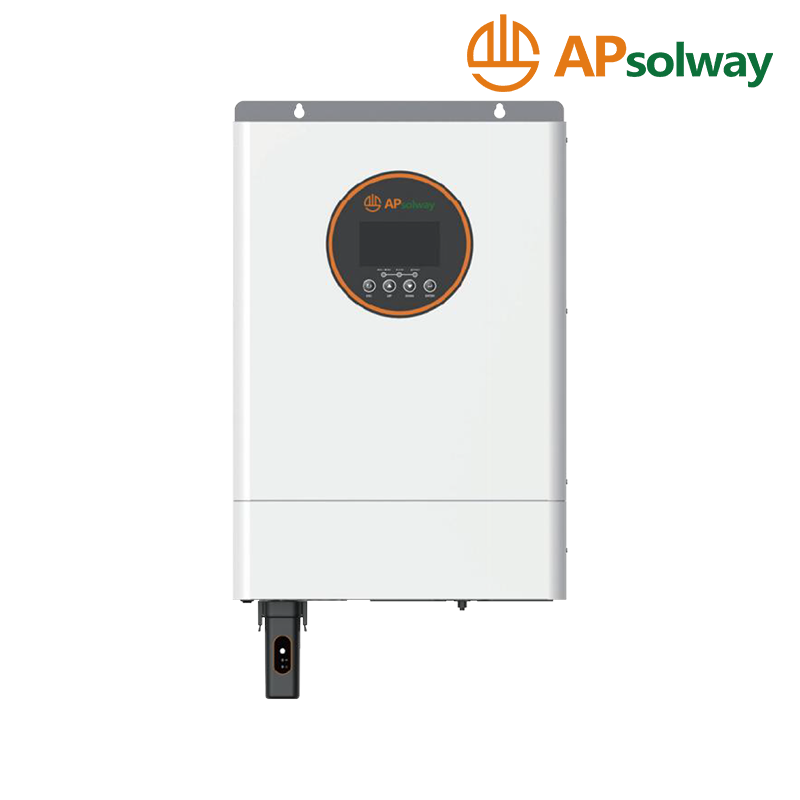

Custom AHS-3.6-SP 3.6kW Split-Phase Solar Battery Hybrid Controller
Home / Products / Solar Inverter / Off Grid Inverter / AHS Series Solar Battery Hybrid Controller / AHS-3.6-SP 3.6kW Split-Phase Solar Battery Hybrid Controller
  • AHS-3.6-SP 3.6kW Split-Phase Solar Battery Hybrid Controller
  • AHS-3.6-SP 3.6kW Split-Phase Solar Battery Hybrid Controller
AHS Series Solar Battery Hybrid Controller

AHS-3.6-SP 3.6kW Split-Phase Solar Battery Hybrid Controller

  • Built to withstand tough environmental conditions, this 24V Split Phase Hybrid Inverter features a rugged design, advanced cooling, and high-quality components that ensure long-term reliability, even in demanding applications.
  • Designed for split-phase power systems common in North America, it delivers both 120V and 240V AC output, making it perfect for residential homes, farms, and small commercial setups that require heavy-duty appliances like air conditioners, water pumps, and kitchen equipment. With a 24V battery input, it efficiently integrates with solar panels and energy storage systems, enabling you to generate, store, and use solar power day and night.
  • Its hybrid functionality allows seamless switching between solar, battery, and grid power, reducing energy costs and providing uninterrupted backup during outages. Smart energy management ensures optimal self-consumption and reduced grid dependence.
  • Whether you're living off-grid, upgrading your solar system, or preparing for emergencies, this inverter delivers stable, clean power with minimal maintenance. Easy to install and compatible with a wide range of solar and battery setups, the 24V Split Phase 120/240V Hybrid Inverter is the durable, all-in-one energy solution for today’s power needs.    Power smarter, live better.
Contact Us
Technical Parameters
Product Parameters
MODEL AHS-3.6-SP
Dimensions W/H/D 420mm×284mm×94mm
Weight 6.2kg
Ingress Protection IP54
Warranty 5years
Operating Ambient Temperature Range -10℃ to 55℃
Storage Temperature Range -15℃ to 60℃
Relative Humidity 5% to 95%
Cooling Air-cooled by smart fans
Communication Interface RS485/CAN
Safety and EMC Compliance EN/IEC62109-1/-2;EN/IEC-6-1/-2/-3/-4;EN/IEC62920
Max.Number of Parallel Units 6
Battery Data
Battery Voltage Type 12V 24V 48V
Float Charging Voltage 13.5V 27V 54V
Overcharging Protection Voltage 15V 30V 60V
Battery Type Lead-acid batteries/lithium batteries
Charging Mode Three-stage charging(lead-acid batteries);
Default charge curve or BMS communication(lithium batteries)
Max.DC Discharge Current 80A
Max.Charge Current(from PV) 80A
Max.Charge Current(from Grid) 80A
Max.Charge Current 80A
Ac Output Data
Max. Output Apparent Power 600VA 1400VA 3600VA
Peak Output Apparent Power 1200VA 2800VA 7200VA
Output Waveform Pure sine wave
Nominal Output Voltage 110VAC/220VAC,115VAC/230VAC,120VAC/240VAC
Nominal Output Frequency 50Hz/60Hz
Peak Efficiency (PV to Inverter) 97.7%
Peak Efficiency (Battery to Inverter) 96.1%
Switching Time 5ms(UPS)20ms(APL)
Overload Protection (102%<load<125%)±10%
Reports an error and turns off the output 5 minutes later
(125%<load<150%)±10%
Reports an error and turns off the output 10 seconds later
(Load>150%)±10%:
Reports an error and turns off the output 5 seconds later
Ac Input Data
Nominal Voltage 110VAC/220VAC,115VAC/230VAC,120VAC/240VAC
Operating Voltage Range L-N:90 to 140VAC(UPS)85 to 140VAC(APL)  L-L:170 to 280VAC(UPS)90 to 280VAC(APL)
Nominal Frequency 50Hz/60Hz
Power Factor(Default/Adiustable) >0.99(adjustable from 0.8leading to 0.8lagging)
Total Harmonic Distortion of Current <3%
Grid Connection Split phase
Max.Bypass Overboard Current 40A
PV Input Data
Max. PV Input Power 6500W
Number of MPPTs 1
Max. Input Voltage 500VDC
MPPT Voltage Range 60 to 450VDC
Max. PV Input Current 22A
MPPT Efficiency 99.9%

Product specifications are subject to change without further notice.
