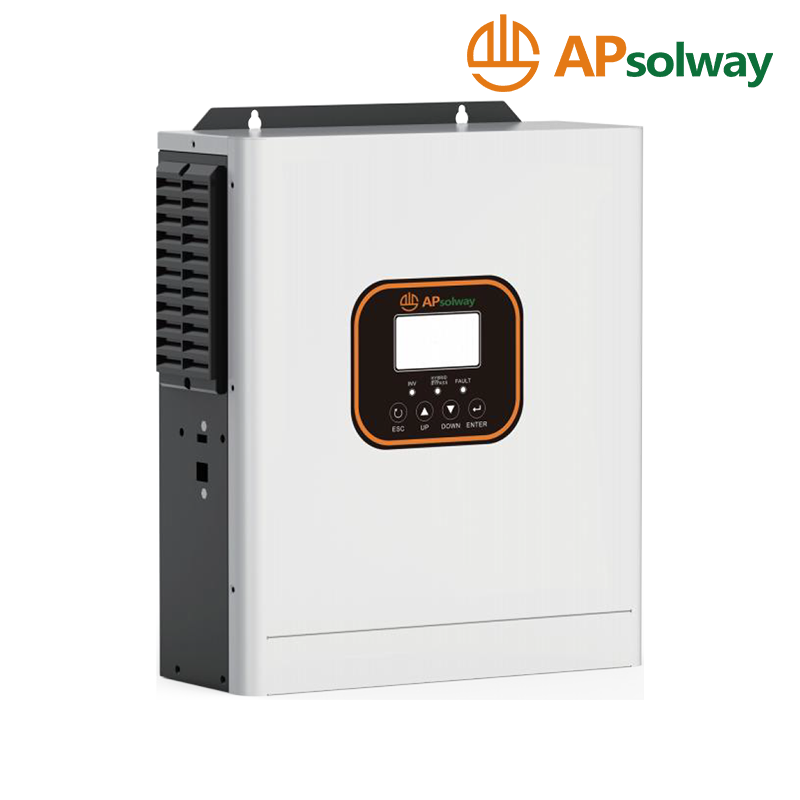

SPH3.6K-24/48-SP 3.6kW Split-Phase Olar off grid inverter

  • SPH3.6K-24/48-SP 3.6kW Split-Phase olar off grid inverter is a 120/240V split-phase hybrid inverter that combines high-capacity input capabilities with intelligent management features, designed to provide residential and small commercial users with more independent energy solutions. This model boasts a rated output power of 3.6kW and a surge capacity of up to 5.3kVA, ensuring stability when starting heavy loads such as air conditioners and refrigerators.
  • Utilizing advanced power conversion technology, it achieves a peak efficiency of 96.5% in PV-to-AC mode, while its efficiency in battery-to-AC mode reaches an impressive 93.0%.
  • In terms of PV input capacity, the SPH3.6K-24/48-SP offers greater flexibility, supporting a maximum PV array power of up to 4200W. Notably, this model supports a wider MPPT operating voltage range (120–450Vdc) and a maximum open-circuit voltage of up to 500Vdc, allowing users to connect more PV modules in series to enhance energy harvesting efficiency. Like other models in the series, it supports battery-free operation, **dual-channel communication (BMS and cloud monitoring)**, and convenient remote management via WiFi or 4G. To ensure long-term system durability, Anyu Technology has equipped the unit with an intelligent fan cooling system and a detachable dust cover, making it well-suited for installation in dusty outdoor or indoor environments.
Contact Us
Technical Parameters
Product Parameters
MODEL SPH3.6K-24/48-SP
PV Array
Max.PV Array Power 4200W
MaxPVArray Open-Circuit Voltage 300/500VDC
Start-up Voltage 60/100VDC
MPPT Operating Voltage Range 70-280/120-450VDC
Nominal Input Voltage 250/360VDC
Max. Input Current MPPT 30/18A
MPPT max Efficiency 99%
Battery
Battery Type Li-ion/Lead-acid
Nominal Battery Voltage 24/48V
Battery Voltage Range 21-29/41-58V
Max.AC Charging Current 50A
Max.PV Charging Current 100A
Max.Continuous Discharging Current 100/120A
AC Input
Nominal Voltage 120Vac±5%/240Vac±5%
Voltage Range 180-280Vac
Frequency 50/60Hz(Auto following)
Max.Input Current 40A
AC Output
Nominal Voltage 120Vac±5%/240Vac±5%
Output Voltage Waveform Pure Sine Wave
Rated Output Power 3600VA/3600W
Peak Output Power 5300VA
Nominal Output Frequency 50/60Hz
Transfer Time 10ms
Efficiency (peak)PV to INV 96.5%
Efficiency (peak)BAT to INV 93.0%
Protection
Over Temperature Protection Yes
Overload Protection 3s@≥150%load;10s@110%~150%load
General Data
Operating Temperature Range -10--+50℃
Relative Humidity 0~95%
Max.Operating Altitude <4000m
Cooling Method Intelligent Fan cooling
Display LED+LCD
Communication with BMS RS485
Communication with Cloud WIFI/4G
Degree of Protection IP43
Warranty 2years
Weight(kg) 10
Dimension(W"H"Dmm) 373*105*300
Mounting Method Wall Mounted

Product specifications are subject to change without further notice.
