Custom SPH3K-24/48 3.0kW Single Phase Solar off grid inverter
Home / Products / Solar Inverter / Off Grid Inverter / SPH Series Off Grid Inverter / SPH3K-24/48 3.0kW Single Phase Solar off grid inverter

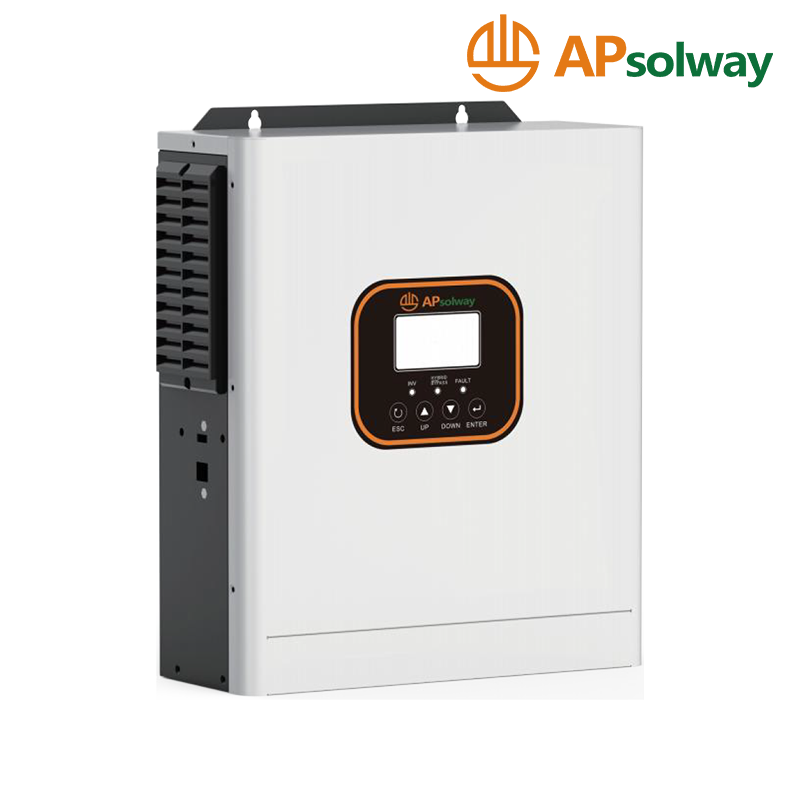

  • SPH3K-24/48 3.0kW Single Phase Solar off grid inverter
  • SPH3K-24/48 3.0kW Single Phase Solar off grid inverter
SPH Series Off Grid Inverter

SPH3K-24/48 3.0kW Single Phase Solar off grid inverter

  • SPH3K-24/48 3.0kW Single Phase Solar off grid inverter features a rated output power of 3.0 kW and delivers a peak power of up to 4500 VA, enabling it to effectively support the instantaneous startup of loads in small homes or offices.
  • This inverter utilizes a pure sine wave output, ensuring high-quality and stable power delivery. One of its most significant design highlights is its battery-free operation mode; it can utilize PV energy to supply power even without a connected battery, thereby greatly enhancing system flexibility.
  • Regarding PV energy harvesting, the SPH3K-24/48 incorporates a high-performance built-in MPPT controller with an efficiency rating of up to 99%. It supports a maximum PV array power of up to 3600 W, with a wide PV input voltage range spanning from 70 to 280 Vdc. The device is compatible with both 24V and 48V battery systems—supporting both lithium-ion and lead-acid batteries—and integrates a lithium battery activation function as well as BMS communication capabilities via RS485.
  • To withstand demanding installation environments, the unit features built-in dust-protection components, achieving an IP43 protection rating.
Contact Us
Technical Parameters
Product Parameters
MODEL SPH3K-24/48
PV Array
Max.PV Array Power 3600W
MaxPV Array Open-Circuit Voltage 300VDC
Start-up Votage 60VDC
MPPT Operating Voltage Range 70-280VDC
MPPT Efficiancy 99%
Nominal Input Voltage 250VDC
Max. input Current MPPT 30A
Battery
Battery Type Li-ion/Lead-acid
Nominal Battery Voltage 24/48V
Battery Voltage Range 21-29/41-58V
Max.AC Charging Current 40A
Max.PV Charging Current 80A
Max.Continuous Discharging Current 100A
AC Input
Nominal Voltage 120Vac
Voltage Range 90-140Vac
Frequency 50/60Hz (Auto following)
High Loss Frequency 65Hz
Low Loss Frequency 45Hz
Max. input Current 40A
AC Output
Nominal Voltage 120Vac±5%
Output Voltage Waveform Pure Sine Wave
Rated Output Power 300OVA/3000W
Peak Output Power 4500VA
Nominal Output Frequency 50/60Hz
Transfer Time 10ms
Max.PV to AC Efficiency 96.5%
Max.Battery to ACEfficiency 91.0%
Protection
Over Temperature Protection Yes
Overload Protection 3s@≥150%load;10s@110%~150%load
General Data
Operating Temperature Range -10--+50℃
Safety Certification CE
Relative Humidity 0~95%Relative Humidity(Non-condensing)
Max.Operating Altitude <4000m
Cooling Method Intelligent Fan cooling
Display LED+LCD
Degree of Protection IP43
Warranty 2 years
Weight(kg) 6.5
Dimension(W*H*Dmm) 326*275*95
Mounting Method Wall Mounted

Product specifications are subject to change without further notice.
