Custom SPH5K-48 5.0kW Single Phase Solar off grid inverter
Home / Products / Solar Inverter / Off Grid Inverter / SPH Series Off Grid Inverter / SPH5K-48 5.0kW Single Phase Solar off grid inverter

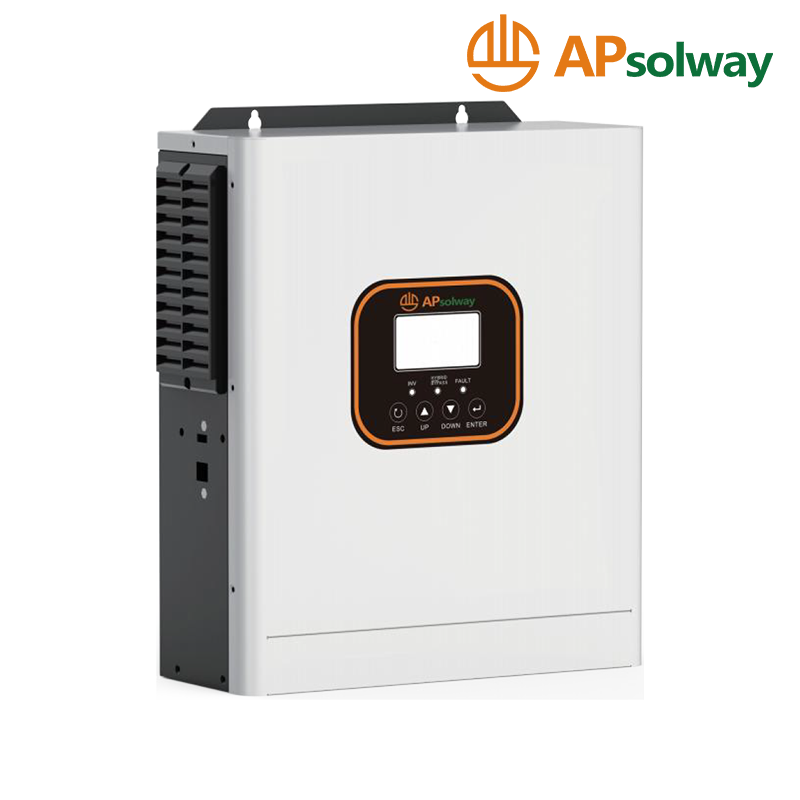

  • SPH5K-48 5.0kW Single Phase Solar off grid inverter
  • SPH5K-48 5.0kW Single Phase Solar off grid inverter
SPH Series Off Grid Inverter

SPH5K-48 5.0kW Single Phase Solar off grid inverter

  • The SPH5K-48 is a high-power model within the SPH series, specifically engineered to meet the electricity demands of entire households or small commercial premises. With a rated output power of 5.0 kW and a robust surge capacity of 7500 VA, it serves as the ideal core component for driving large appliances or inductive loads.
  • This device utilizes a 48V battery voltage system, achieving a conversion efficiency of up to 91% in battery mode—a feature that effectively extends the runtime of the energy storage system. Leveraging advanced DSP control technology, it generates a 120V pure sine wave output with extremely low distortion, thereby providing a safe and secure power supply for sensitive electronic equipment.
  • In terms of PV input capabilities, the SPH5K-48 pushes boundaries further, supporting a maximum PV array power of up to 6000W and a maximum charging current of 100A. Its MPPT controller maintains high-efficiency operation across a wide voltage range of 70–280 VDC, ensuring optimal energy harvesting even in cloudy or low-light conditions. Regarding its feature set, the unit not only supports a battery wake-up function but also facilitates deep integration with lithium battery BMS systems via an RS485 interface, thereby optimizing battery lifespan. The device employs an intelligent fan-based cooling system to ensure that temperature rise remains within safe limits, even during high-power operation. Combined with an optional cloud-based monitoring system and a configurable grid-feed function, the SPH5K-48 offers a comprehensive 120V off-grid system solution for users seeking high capacity and energy independence.
Contact Us
Technical Parameters
Product Parameters
MODEL SPH5K-48
PV Array
Max.PV Array Power 6000W
MaxPV Array Open-Circuit Voltage 300VDC
Start-up Votage 60VDC
MPPT Operating Voltage Range 70-280VDC
MPPT Efficiancy 99%
Nominal Input Voltage 250VDC
Max. input Current MPPT 30A
Battery
Battery Type Li-ion/Lead-acid
Nominal Battery Voltage 48V
Battery Voltage Range 42-58V
Max.AC Charging Current 50A
Max.PV Charging Current 100A
Max.Continuous Discharging Current 120A
AC Input
Nominal Voltage 120Vac
Voltage Range 90-140Vac
Frequency 50/60Hz (Auto following)
High Loss Frequency 65Hz
Low Loss Frequency 45Hz
Max. input Current 50A
AC Output
Nominal Voltage 120Vac±5%
Output Voltage Waveform Pure Sine Wave
Rated Output Power 5000VA/5000W
Peak Output Power 7500VA
Nominal Output Frequency 50/60Hz
Transfer Time 10ms
Max.PV to AC Efficiency 96.5%
Max.Battery to ACEfficiency 91.0%
Protection
Over Temperature Protection Yes
Overload Protection 3s@≥150%load;10s@110%~150%load
General Data
Operating Temperature Range -10--+50℃
Safety Certification CE
Relative Humidity 0~95%Relative Humidity(Non-condensing)
Max.Operating Altitude <4000m
Cooling Method Intelligent Fan cooling
Display LED+LCD
Degree of Protection IP43
Warranty 2 years
Weight(kg) 8.4
Dimension(W*H*Dmm) 363*105*300
Mounting Method Wall Mounted

Product specifications are subject to change without further notice.
