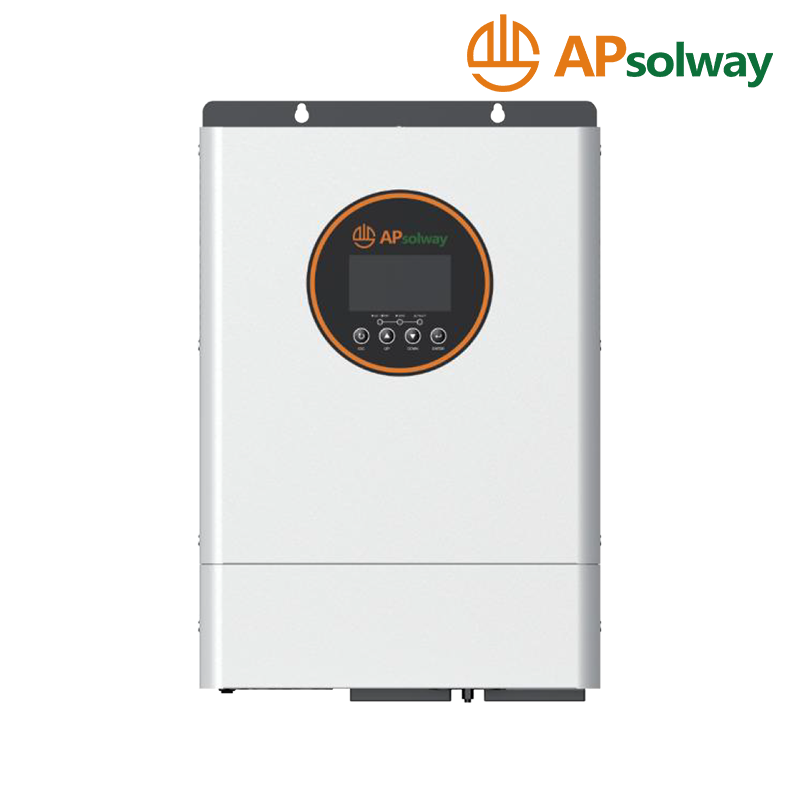

Custom AHS-10.2 10.2kW Single Phase Solar Battery Hybrid Controller
Home / Products / Solar Inverter / Off Grid Inverter / AHS Series Solar Battery Hybrid Controller / AHS-10.2 10.2kW Single Phase Solar Battery Hybrid Controller
  • AHS-10.2 10.2kW Single Phase Solar Battery Hybrid Controller
  • AHS-10.2 10.2kW Single Phase Solar Battery Hybrid Controller
AHS Series Solar Battery Hybrid Controller

AHS-10.2 10.2kW Single Phase Solar Battery Hybrid Controller

  • AHS-10.2 10.2kW Single Phase Solar Battery Hybrid Controller is a single-phase hybrid controller that combines high power output with intelligent functionality, designed specifically for medium-to-large residential properties with substantial energy demands. With a rated capacity elevated to 10.2 kW and an impressive peak surge capability of 20.4 kVA, it serves as the ideal core component for powering heavy-duty loads such as central air conditioning systems and water pumps. Continuing the legacy of excellence established by the AHS series, this product features an IP54-rated design, offering effective protection against dust and moisture ingress.
  • In terms of energy harvesting, the AHS-10.2 demonstrates distinct performance advantages, boasting a maximum PV input power of 10,000 W. It incorporates a dual MPPT input design—with a maximum input current of 22 A per channel—significantly enhancing the system's compatibility with complex rooftop PV array configurations. Regarding battery charging performance, the device achieves a maximum charging current of up to 210 A when utilizing a combined grid and PV power source, thereby drastically reducing the recharge time for the energy storage system. Furthermore, it supports a dual AC output function, enabling users to flexibly prioritize power supply to primary and secondary loads based on the current battery voltage status.
Contact Us
Technical Parameters
Product Parameters
MODEL AHS-10.2
Dimensions W/H/D 480mm×410mm×120mm
Weight 14.5kg
Ingress Protection IP54
Warranty 5yeas
Operating Ambient Temperature Range -10℃ to 55℃
Storage Temperature Range -15℃ to 60℃
Relative Humidity 5% to 95%
Cooling Air-cooled by smart fans
Communication Interface RS485/CAN
Safety and EMC Compliance EN/IEC62109-1/-2;EN/IEC-6-1/-2/-3/-4;EN/IEC62920
Max. Number of Parallel Units 6
Battery Data
Battery Voltage Type 48V
Fbat Charging Voltoge 54V
Overcharging Protection Voltage 60V
Battery Type Lead-acid batteries/lithium batteries
Charging Mode Three-stage charging(lead-acid batteries);
Default charge curve or BMS communication(lithium batteries)
Max.DC Discharge Current 210A
Max.Charge Current(from PV) 210A
Max.Charge Current(from Grid) 210A
Max.Charge Current 210A
Ac Output Data
Max.Output Apparent Power 10200VA
Peak Output Apparent Power 20400VA
Output Waveform Pure sine wave
Nominal Output Voltage 220VAC/230VAC/240VAC
Nominal Output Frequency 50Hz/60Hz
Peak Efficiency (PV to Inverter) 97.7%
Peak Efficiency (Battery to Inverter) 96.1%
Switching Time 5ms(UPS)20ms(APL)
Overload Protection (102%<load<110%)±10%:Reports an error and turns off the output 5 minutes later.
(110%<load<125%)±10%:Reports an error and turns off the output 10 seconds later.
(Load>125%)±10%:Reports an error and turns off the output 5 seconds later.
Ac Input Data
Nominal Voltage 22OVAC/230VAC/240VAC
Operating Voltage Range 170 to 280VAC(UPS)90 to 280VAC(APL)
Nominal Frequency 50Hz/60Hz
Power Factor (Default/Adjustable) >0.99(adjustable from 0.8 leading to 0.8 lagging)
Total Harmonic Distortion of Current <3%
Grid Connection Single phase
Max. Bypass Overload Current 60A
PV Input Data
Max. PV Input Power 10000W
Number of MPPTs 2
Max. Input Voltage 500VDC
MPPT Voltage Range 60 to 450VDC
Max. PVInput Current 22A+22A
MPPT Efficiency 99.9%

Product specifications are subject to change without further notice.
