Custom AHS-12-SP 12kW Split-Phase Solar Battery Hybrid Controller
Home / Products / Solar Inverter / Off Grid Inverter / AHS Series Solar Battery Hybrid Controller / AHS-12-SP 12kW Split-Phase Solar Battery Hybrid Controller
  • AHS-12-SP 12kW Split-Phase Solar Battery Hybrid Controller
  • AHS-12-SP 12kW Split-Phase Solar Battery Hybrid Controller
AHS Series Solar Battery Hybrid Controller

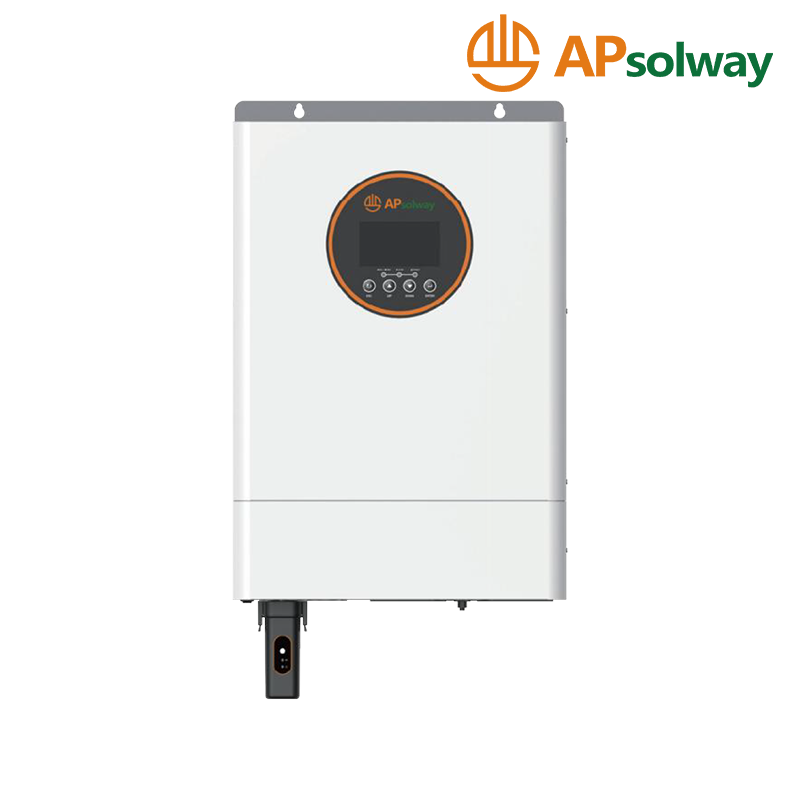

AHS-12-SP 12kW Split-Phase Solar Battery Hybrid Controller

  • AHS-12-SP 12kW Split-Phase Solar Battery Hybrid Controller delivers a premium energy management experience for large residential properties and commercial environments with high power demands. This model boasts an impressive rated output power of 12,000 VA (12 kW) and a momentary peak power capacity of up to 24,000 VA—sufficient to simultaneously power a full suite of high-end household appliances. It supports split-phase output modes (110/220 VAC or 120/240 VAC), generating high-quality pure sine wave current that provides a grid-stable power environment for sensitive electronic equipment.
  • The AHS-12-SP represents a significant breakthrough in photovoltaic integration capabilities. It features a dual MPPT input design capable of accommodating up to 15,000 W of solar panels; with a maximum input current increased to 27A + 27A per channel, it is fully compatible with high-power PV modules. For large-scale energy storage applications, the unit offers a maximum charging current of 250A and supports parallel operation of up to six units, greatly enhancing system scalability and flexibility. Operating in battery mode, the device achieves a peak efficiency of 96.1%, ensuring minimal energy loss during the power conversion process.
  • In terms of physical specifications, the unit measures 480 × 410 × 120 mm and weighs 14.5 kg, offering an exceptionally high power density relative to other products in its class. This model integrates comprehensive safety protection mechanisms, holds an IP54 protection rating, and supports remote intelligent monitoring and maintenance via Wi-Fi.
Contact Us
Technical Parameters
Product Parameters
MODEL AHS-12-SP
Dimensions W/H/D 480mm×410mm×120mm
Weight 14.5kg
Ingress Protection IP54
Warranty 5years
Operating Ambient Temperature Range -10℃ to 55℃
Storage Temperature Range -15℃ to 60℃
Relative Humidity 5% to 95%
Cooling Air-cooled by smart fans
Communication Interface RS485/CAN
Safety and EMC Compliance EN/IEC62109-1/-2;EN/IEC-6-1/-2/-3/-4;EN/IEC62920
Max.Number of Parallel Units 6
Battery Data
Battery Voltage Type 48V
Float Charging Voltage 54V
Overcharging Protection Voltage 60V
Battery Type Lead-acid batteries/lithium batteries
Charging Mode Three-stage charging(lead-acid batteries);
Default charge curve or BMS communication(lithium batteries)
Max.DC Discharge Current 250A
Max.Charge Current(from PV) 250A
Max.Charge Current(from Grid) 250A
Max.Charge Current 250A
Ac Output Data
Max. Output Apparent Power 12000VA
Peak Output Apparent Power 24000VA
Output Waveform Pure sine wave
Nominal Output Voltage 110/220VAC,120/240VAC
Nominal Output Frequency 50Hz/60Hz
Peak Efficiency (PV to Inverter) 97.7%
Peak Efficiency (Battery to Inverter) 96.1%
Switching Time 5ms(UPS)20ms(APL)
Overload Protection (102%<load<110%)±10%:
Reports an error and turns off the output 5 minutes later
(110%<load<125%)±102:
Reports an error and turns off the output 10 seconds later
(Load>125%)±10%
Reports an error and turns off the output 5 seconds later
Ac Input Data
Nominal Voltage 110/220VAC,120/240VAC
Operating Voltage Range L-N:90 to 140VAC(UPS)85 to 140VAC(APL)  L-L:170 to 280VAC(UPS)90 to 280VAC(APL)
Nominal Frequency 50Hz/60Hz
Power Factor(Default/Adiustable) >0.99(adjustable from 0.8leading to 0.8lagging)
Total Harmonic Distortion of Current <3%
Grid Connection Split phase
Max.Bypass Overboard Current 80A
PV Input Data
Max. PV Input Power 15000W
Number of MPPTs 2
Max. Input Voltage 500VDC
MPPT Voltage Range 60 to 450VDC
Max. PV Input Current 27A+27A
MPPT Efficiency 99.9%

Product specifications are subject to change without further notice.
