Custom AHS-5-LV 5.0kW US-standard Solar Battery Hybrid Controller
Home / Products / Solar Inverter / Off Grid Inverter / AHS Series Solar Battery Hybrid Controller / AHS-5-LV 5.0kW US-standard Solar Battery Hybrid Controller
  • AHS-5-LV 5.0kW US-standard Solar Battery Hybrid Controller
  • AHS-5-LV 5.0kW US-standard Solar Battery Hybrid Controller
AHS Series Solar Battery Hybrid Controller

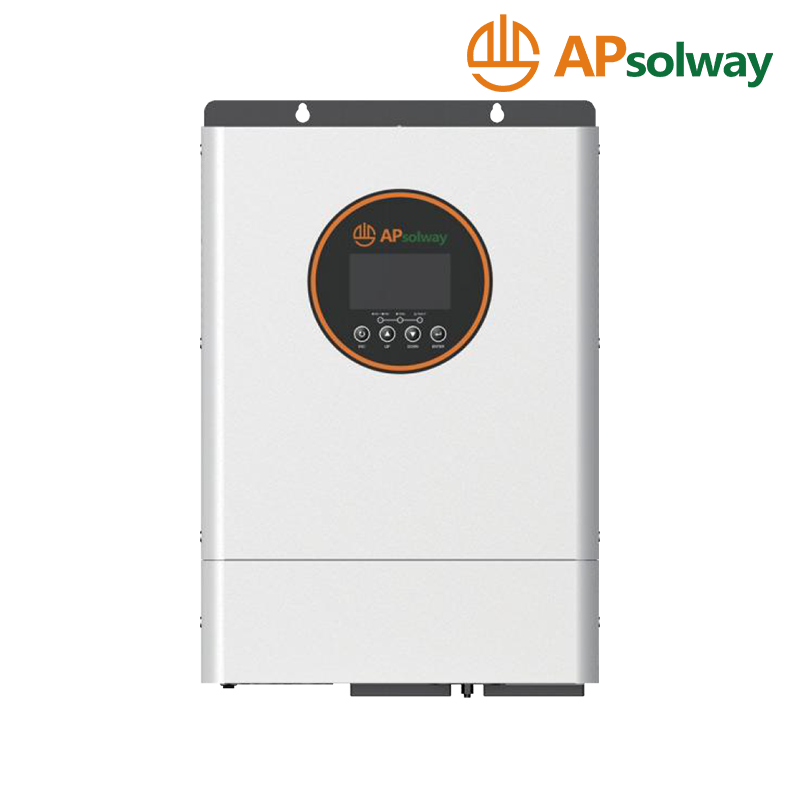

AHS-5-LV 5.0kW US-standard Solar Battery Hybrid Controller

  • AHS-5-LV 5.0kW US-standard Solar Battery Hybrid Controller has been extensively optimized for 110V/115V/120V voltage systems, fully complying with U.S. electrical standards; it represents an ideal choice for residential energy storage and small-scale commercial applications. At its core, the unit employs DSP control and dual-loop technology to deliver a stable, pure sine wave output, thereby ensuring a high-quality power supply for sensitive loads.
  • In terms of performance specifications, the AHS-5-LV demonstrates exceptional energy conversion efficiency. It features a rated output power of 5.0kW, coupled with robust peak load-bearing capabilities, allowing for an instantaneous surge power of up to 10,000VA. The device incorporates a built-in, high-efficiency MPPT charge controller capable of supporting a maximum solar PV input of 6,000W; with an MPPT efficiency reaching as high as 99.9%, it ensures maximum energy harvesting across varying lighting conditions. Regarding conversion efficiency, the peak efficiency for PV-to-inverter conversion reaches 96%, while battery-to-inverter efficiency stands at an impressive 94.5%. The unit supports 48V battery systems and offers full compatibility with both lithium-ion and lead-acid batteries, featuring a lithium battery activation function as well as BMS communication capabilities via RS485 or CAN interfaces.
  • Designed to withstand harsh operating environments, the AHS-5-LV features an IP54 protection rating, effectively shielding the unit against dust and moisture to significantly enhance system reliability and service life. Its intelligent air-cooling design—combined with comprehensive protection mechanisms against short circuits, overvoltage, undervoltage, and overload—provides multiple layers of safety assurance for system operation. Furthermore, to accommodate future expansions in power demand, this model supports parallel operation of up to six units, enabling users to easily construct larger-capacity power systems.
Contact Us
Technical Parameters
Product Parameters
MODEL AHS-5-LV
Dimensions W/H/D 362mm×526mm×141mm
Weight 11.8kg
Ingress Protection IP54
Warranty 5years
Operating Ambient Temperature Range -10℃ to 55℃
Storage Temperature Range -15℃ to 60℃
Relative Humidity 5% to 95%
Cooling Air-cooled by smart fans
Communication Interface RS485/CAN
Safety and EMC Compliance EN/IEC62109-1/-2;EN/IEC-6-1/-2/-3/-4;EN/IEC62920
Max.Number of Parallel Units 6
Battery Data
Battery Voltage Type 12V 24V 48V
Fbat Charging Voltage 13.5V 27V 54V
Overcharging Protection Voltage 15V 30V 60V
Battery Type Lead-acid batteries/lithium batteries
Charging Mode Three-stage charging(lead-acid batteries);
Default charge curve or BMS communication (lithium batteries)
Max.DC Discharge Current 110A
Max.Charge Current(from PV) 85A 100A 110A
Max.Charge Current(from Grid) 85A 100A 110A
Max.Charge Current 85A 100A 110A
AC Output Data
Max.Output Apparent Power 1000VA 2300VA 5000VA
Peak Output Apparent Power 2000VA 4600VA 10000VA
Output Waveform Pure sine wave
Nominal Output Voltage 110VAC/115VAC/120VAC
Nominal Output Frequency 50Hz/60Hz
Peak Efficiency (PVto Inverter) 96%
Peak Efficiency (Battery to Inverter) 94.5%
Switching Time 5ms
Overload Protection (102%< load < 110%) ± 10%: close the output after reporting an error for 5 minutes;
(110% < load < 120%) ± 10%: close the output after reporting an error for 10 seconds;
(Load > 120%) ± 10%: close the output after reporting an error for 5 seconds.
AC Input Data
Nominal Voltage 110VAC/115VAC/120VAC
Operating Voltage Range 90 to 140 VAC
Nominal Frequency 50Hz/60Hz
Power Factor(Default/Adiustable) >0.99(adjustable from 0.8 leading to 0.8 lagging)
Total Harmonic Distortion of Current <3%
Grid Connection Single phase
Max.Bypass Overload Current 50A
PV Input Data
Max.PV Input Power 6000W
Number of MPPTs 1
Max.Input Voltage 350VDC
MPPT Voltage Range 60 to 300VDC
Max. PV Input Current 22A
MPPT Efficiency 99.9%

Product specifications are subject to change without further notice.
