Custom AHS-6.3-SP 6.3kW Split-Phase Solar Battery Hybrid Controller
Home / Products / Solar Inverter / Off Grid Inverter / AHS Series Solar Battery Hybrid Controller / AHS-6.3-SP 6.3kW Split-Phase Solar Battery Hybrid Controller
  • AHS-6.3-SP 6.3kW Split-Phase Solar Battery Hybrid Controller
  • AHS-6.3-SP 6.3kW Split-Phase Solar Battery Hybrid Controller
AHS Series Solar Battery Hybrid Controller

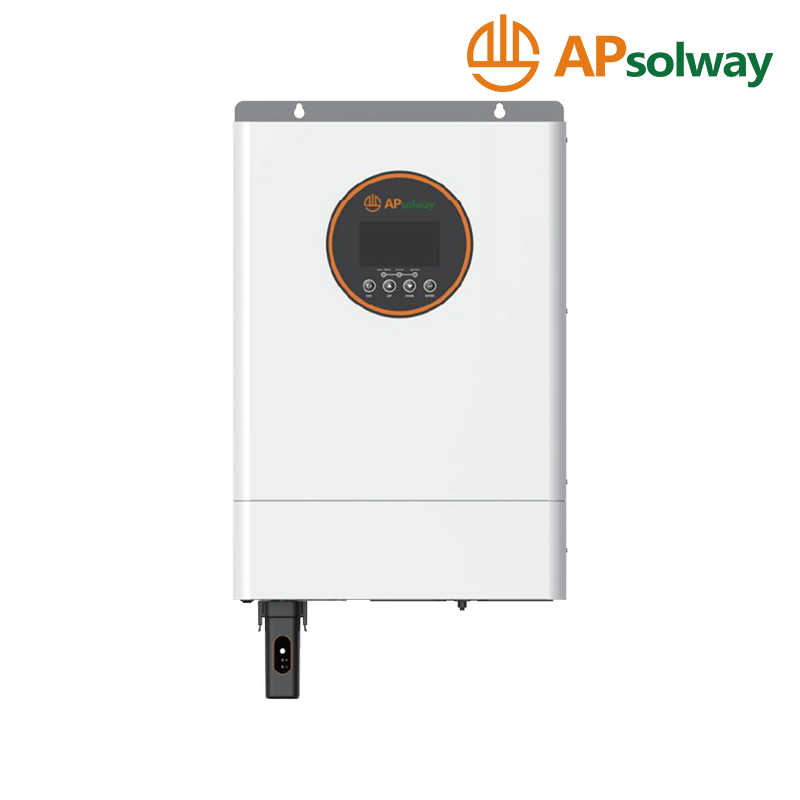

AHS-6.3-SP 6.3kW Split-Phase Solar Battery Hybrid Controller

  • AHS-6.3-SP 6.3kW Split-Phase Solar Battery Hybrid Controller is a high-performance hybrid inverter specifically designed for North America and other regions utilizing split-phase power systems. This model is perfectly compatible with a wide range of voltage systems—including 110/115/120/220/230/240V—providing flexible energy solutions for residential and small-scale commercial users.
  • With a rated output power of 6300VA (6.3kW) and a peak output capability reaching up to 12600VA, the device can effortlessly start up various high-power household appliances. It features a pure sine wave output, combined with advanced DSP control and dual-loop technology, ensuring exceptional stability and safety in power delivery.
    In terms of energy harvesting and management, the AHS-6.3-SP demonstrates outstanding performance. It features a built-in high-efficiency MPPT controller that supports a maximum PV input power of 6500W, boasting an MPPT efficiency of up to 99.9%.
  • The device supports 48V battery systems and is fully compatible with both lithium-ion and lead-acid batteries, offering lithium battery activation capabilities as well as BMS communication functionality. Its peak efficiency in PV-to-inverter mode reaches 97.7%. Furthermore, the AHS-6.3-SP incorporates an intelligent air-cooling design with an IP54 protection rating, enabling it to effectively adapt to complex operating environments and extend the device's service life. Users can monitor system status and manage energy dispatch in real-time, 24 hours a day, via a 5-inch LCD screen or a dedicated mobile app. Backed by a 5-year manufacturer's warranty, this product provides users with a long-term, reliable guarantee of green electricity.
Contact Us
Technical Parameters
Product Parameters
MODEL AHS-6.3-SP
Dimensions W/H/D 380mm×576mm×141mm
Weight 12.8kg
Ingress Protection IP54
Warranty 5years
Operating Ambient Temperature Range -10℃ to 55℃
Storage Temperature Range -15℃ to 60℃
Relative Humidity 5% to 95%
Cooling Air-cooled by smart fans
Communication Interface RS485/CAN
Safety and EMC Compliance EN/IEC62109-1/-2;EN/IEC-6-1/-2/-3/-4;EN/IEC62920
Max.Number of Parallel Units 6
Battery Data
Battery Voltage Type 12V 24V 48V
Float Charging Voltage 13.5V 27V 54V
Overcharging Protection Voltage 15V 30V 60V
Battery Type Lead-acid batteries/lithium batteries
Charging Mode Three-stage charging(lead-acid batteries);
Default charge curve or BMS communication(lithium batteries)
Max.DC Discharge Current 135A 135A 135A
Max.Charge Current(from PV) 85A 105A 135A
Max.Charge Current(from Grid) 85A 105A 135A
Max.Charge Current 85A 105A 135A
Ac Output Data
Max. Output Apparent Power 1000VA 2500VA 6300VA
Peak Output Apparent Power 2000VA 5000VA 12600VA
Output Waveform Pure sine wave
Nominal Output Voltage 110VAC/220VAC,115VAC/230VAC,120VAC/240VAC
Nominal Output Frequency 50Hz/60Hz
Peak Efficiency (PV to Inverter) 97.7%
Peak Efficiency (Battery to Inverter) 96.1%
Switching Time 5ms(UPS)20ms(APL)
Overload Protection (102%<load<125%)±10%
Reports an error and turns off the output 5 minutes later
(125%<load<150%)±10%
Reports an error and turns off the output 10 seconds later
(Load>150%)±10%
Reports an error and turns off the output 5 seconds later
Ac Input Data
Nominal Voltage 110VAC/220VAC,115VAC/230VAC,120VAC/240VAC
Operating Voltage Range L-N:90 to 140VAC(UPS)85 to 140VAC(APL)  L-L:170 to 280VAC(UPS)90 to 280VAC(APL)
Nominal Frequency 50Hz/60Hz
Power Factor(Default/Adiustable) >0.99(adjustable from 0.8leading to 0.8lagging)
Total Harmonic Distortion of Current <3%
Grid Connection Split phase
Max.Bypass Overboard Current 40A
PV Input Data
Max. PV Input Power 6500W
Number of MPPTs 1
Max. Input Voltage 500VDC
MPPT Voltage Range 60 to 450VDC
Max. PV Input Current 22A
MPPT Efficiency 99.9%

Product specifications are subject to change without further notice.
