1. Colorful touch LCD, IP66 protection degree, 6 time periods for battery charging/discharging.
2. Max.16 pcs parallel for on-grid andAc coupling to retrofit off-grid operation.
3. Support mutiple existing solar system batteries parallel.
Support storing energy from diesel generator.
Safe and reliable.
Built-in overvoltage, undervoltage, overload, short circuit, and overtemperature protection.
Provides reliable protection for household appliances, reducing electricity risks.


Colorful touch LCD, Ip66 protection degree	Ac coupling to retrofit existing solar system	Max. 16 pcs parallel for on-grid and off-grid operation; Support multiple batteries parallel

6 time periods for battery charging/discharging	Support storing energy from diesel generator

Certifications

Product Characteristics

Lcd Display Icons

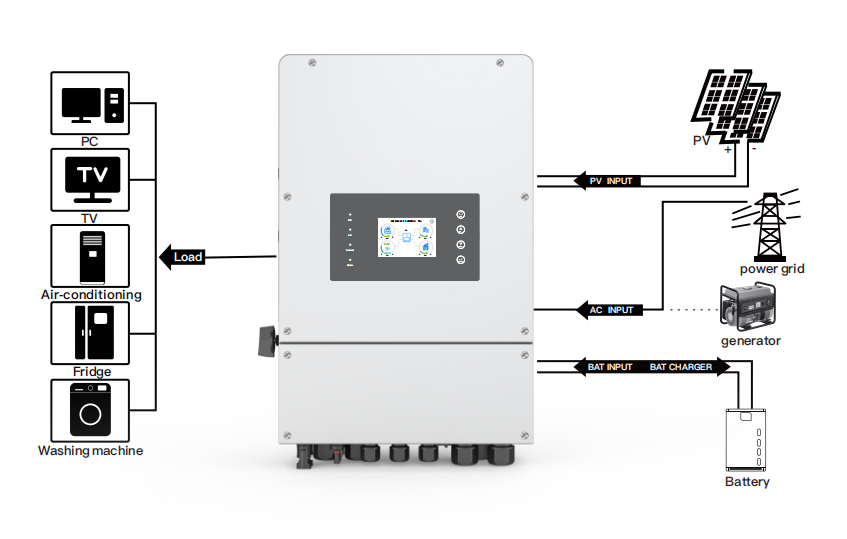

Basic System Architecture

Data Sheet

Model	HCC05-SM-0050H-EP-	HCC05-SM-0060H-EP-D	HCC05-SM-0080H-EP-D
Battery Input Data
Battery Type	Lead-acid or Li-lon
Battery Voltage Range(V)	40-60	40-60	40-60
Max.Charging Current(A)	120	135	190
Max.Discharging Current(A)	120	135	190
Charging Curve	3 Stages/Equalization
External Temperature Sensor	Yes
Charging Strategy for Li-lon Battery	Self-adaption to BMS
PV String Input Data
Max.DC Input Power(W)	6500	7800	10400
PVInput Voltage(V)	370V(125V-500V)
MPPT Range(V)	150-425V
Full Load DC Voltage Range	300-425V
Start-up Voltage(V)	125V
PV Input Current(A)	18+18	18+18	26+26
Max.PV Isc(A)	27+27	27+27	34+34
No.of MPPT Trackers	2	2	2
No.of Strings Per MPPT Tracker	1+1	1+1	1+1
AC Input/Output Data
Rated AC Output and UPS Power(W)	5000	6000	8000
Max.AC Output Power(W)	5500	6600	8800
Peak Power(off grid)	2 times of rated power,10S
AC Input/Output Rated Current(A)	22.8/21.8	27.3/26.1	36.4/34.8
Max.AC Input/Output Current(A)	25/24	30/28.7	40/38.3
Max.Continuous AC Passthrough(A)	35	40	50
Power Factor	0.8 leading to 0.8 lagging
Output Frequency and Voltage	50/60Hz;220/230Vac
Grid Type	Single Phase
Total Harmonic Distortion(THDi)	<3%(of nominal power)
DC current injection	<0.5%In
Efficiency
Max.Efficiency	97.60%
Euro Efficiency	96.50%
MPPT Efficiency	>99%
Protection
PVArC Fault Detection	Integrated
PVInput Lightning Protection	Integrated
Anti-islanding Protection	Integrated
PV String Input Reverse Polarity Protection	Integrated
Insulation Resistor Detection	Integrated
Residual Current Monitoring Unit	Integrated
Output Over Current Protection	Integrated
Output Shorted Protection	Integrated
Surge Protection	DC Type II/AC Type ll
Over Voltage Category	DC Type II/AC Type Ⅲ
Certifications and Standards
Grid Regulation	IEC61727/62116,EN50549-1
EMC/Safety Regulation	IEC/EN 61000-6-1/2/3/4,IEC/EN 62109-1,IEC/EN 62109-2
General Data
Operating Temperature Range(℃)	40-60℃,>45℃ Derating
Cooling	Smart cooling
Noise(dB)	<50 dB
Communication with BMS	RS485;CAN
Monitoring mode	Wi-Fi+APP
Weight(kg)	19		24
Cabinet size(mm) Excluding connectors and brackets)	340W×520H×255D (Excluding connectors and brackets)		340W×610H×260D (Excluding connectors and brackets)
Ingress Protection Degree	IP66
Installation Style	Wall-mounted
Warranty 5 Years
