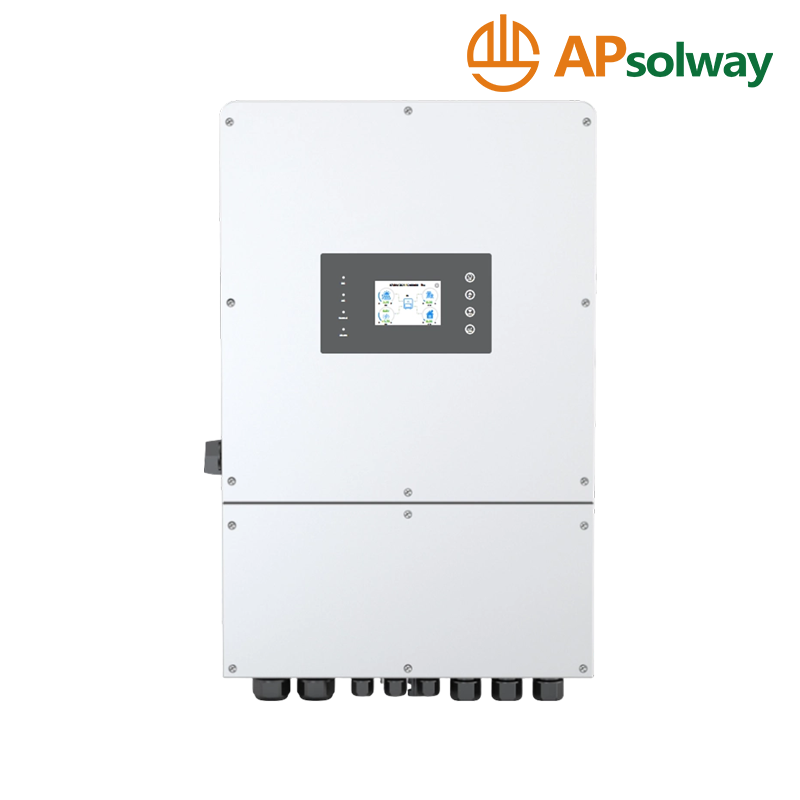

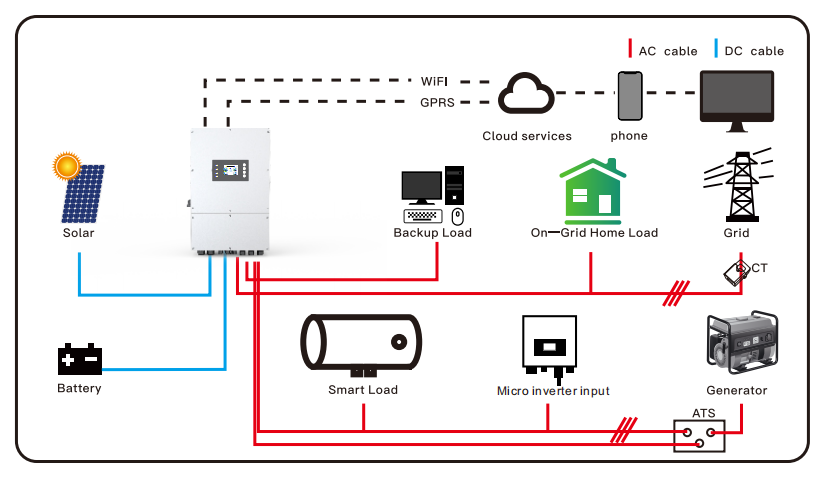

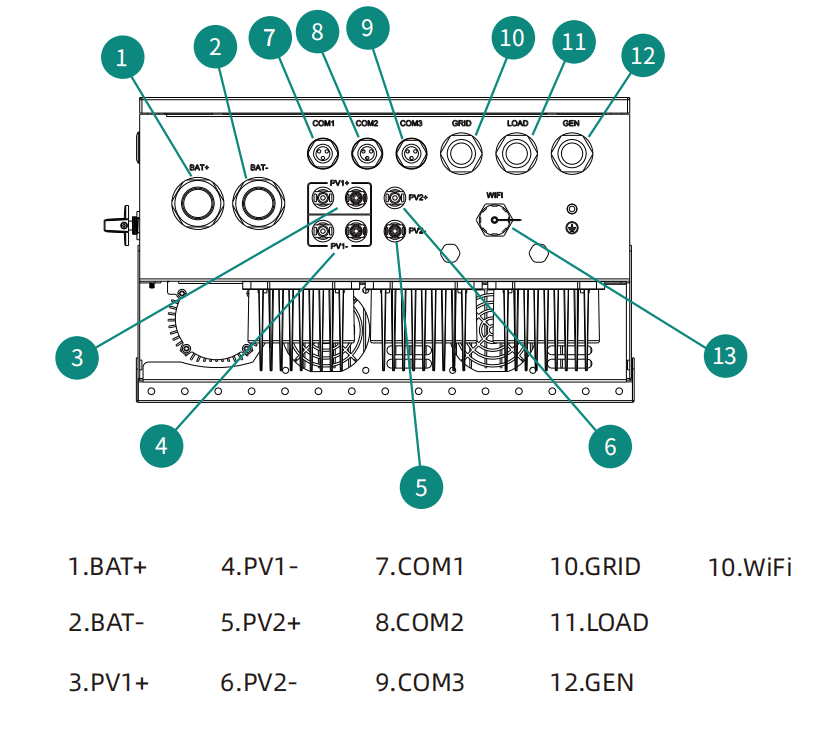

HCC01-TM-0060/0080/0100/0120H-EP-D High Power Three Phase Hybrid Inverter

100% three-phase unbalanced output, with each phase capable of delivering up to 50% of the rated power

Max. charging/discharging current of 135A

Support storing energy from diesel generator

Model

HCC01-TM-0060H-EP-D

HCC01-TM-0080H-EP-D

HCC01-TM-0100H-EP-D

HCC01-TM-0120H-EP-D

PV String Input

Max.DC Input Power(W)

7800

10400

13000

15600

Rated PV Input Voltage(V)

550(160-800)

Start-up Voltage(V)

160

MPPT Voltage Range(V)

200-650

Full Load MPPT Voltage Range(V)

350-650

Max.DC Input Current(A)

13+13

26+13

Max.DC Short Circuit Current(A)

17+17

34+17

No.of MPPT Trackers

2

No.of Strings per MPPT Tracker

2+1

AC Input/Output Data

Rated AC Output Power(W)

6000

8000

10000

12000

Max AC Output Power(W)

6600

8800

11000

13200

AC Input/Output Rated Current(A)

9.1/8.7

12.1/11.6

15.2/14.5

18.2/17.4

Max.AC Input/Output Current(A)

10/9.6

13.4/12.8

16.7/15.9

20/19.1

Max.Three-phase Unbalanced Output

Current(A)

13.6/13

18.2/17.4

22.7/21.7

27.3/26.1

Max Output short circuit current(A)

75

Max.Continuous AC Passthrough(A)

45

Peak Power(off grid)

2 times of rated power,10S

Power Factor

0.8 leading-0.8 lagging

Output Frequency and Voltage

50/60Hz;3L/N/PE 220/380Vac,230/400Vac

Grid Type

Three Phase

Total Harmonic Distortion(THDi)

<3%

DC Current Injection

<0.5%In

Battery

Battery Type

Lead-acid or Lithium-ion

Battery Voltage Range(V)

40-60

Max.Charging Current(A)

120

160

200

240

Max.Discharging Current(A)

120

160

200

240

External Temperature Sensor

Yes

Charging Curve

3 Stages /Equalization

Charging Strategy for Li-lon Battery

Self-adaption to BMS

Efficiency

Max.Efficiency

97.6%

Euro Efficiency

97.0%

MPPT Efficiency

99.0%

Protection

Anti-islanding Protection

Yes

PV String Input Reverse Polarity

Yes

Insulation Resistor Detection

Yes

Residual Current Monitoring Unit

Yes

Output Over Current Protection

Yes

Output Shorted Protection

Yes

Output overvoltage protection

Yes

Photovoltaic input lightning

Yes

Surge Protection

DC Type Ⅲ/AC TypeⅢ

Over Voltage Category

DC Type II/AC Type I

Certifications and Standards

Grid Regulation

IEC61727/62116,EN50549-1

Safety EMC/Standard

IEC/EN 61000-6-1/2/3/4,IEC/EN 62109-1,IEC/EN 62109-2

General Data

Operating Temperature Range(℃)

-40-60°℃,>45℃Derating

Cooling

Smart Cooling

Noise(dB)

≤50 dB

Communication to BMS

RS485;CAN

Monitoring mode

Wi-Fi+APP

Weight(kg)

34

Size(WxHxDmm)

440W×680H×255D(Excluding Connectors and Brackets)

Ingress Protection

IP66

Installation Style

Wall-mounted

Warranty

5 Years(10 Years Optional)
