1. Colorful touch LCD, lP66 protection degree, Max. 16 pcs parallel for on-grid and off-grid operation.
2. Ac coupling to retrofit existing solar system, support multiple batteries parallel.
3. Max.charging/discharging current of 250A, 6 time periods for battery charging/discharging.
4. Support storing energy from diesel generator.
Reliable Operation.
Mature design, simple technology, and low maintenance costs.
Stable performance for light and intermittent loads.


Colorful touch LCD, Ip66 protection degree	Ac coupling to retrofit existing solar system	Max. 16 pcs parallel for on-grid and off-grid operation; Support multiple batteries parallel

Max. charging/discharging current of 135A	6 time periods for battery charging/discharging	Support storing energy from diesel generator

Certifications

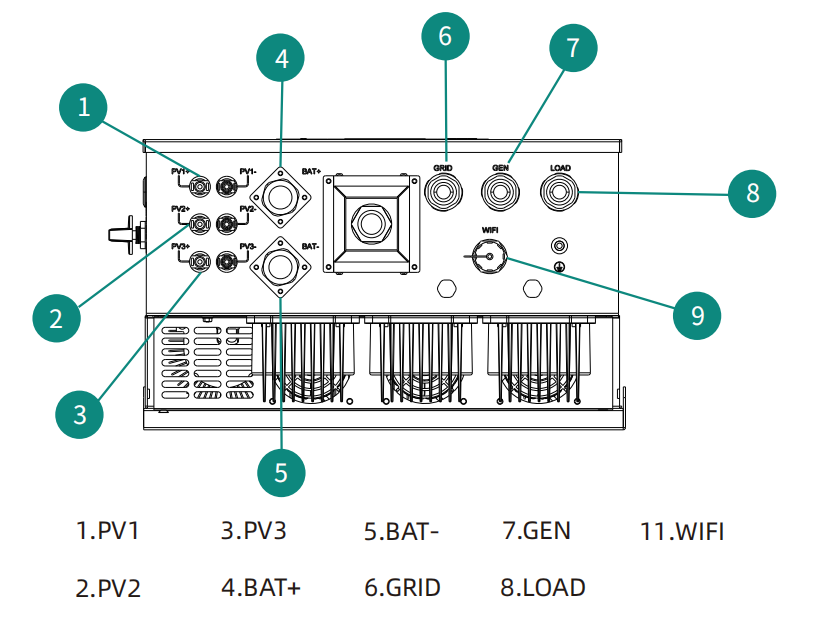

Product Characteristics

Lcd Display Icons

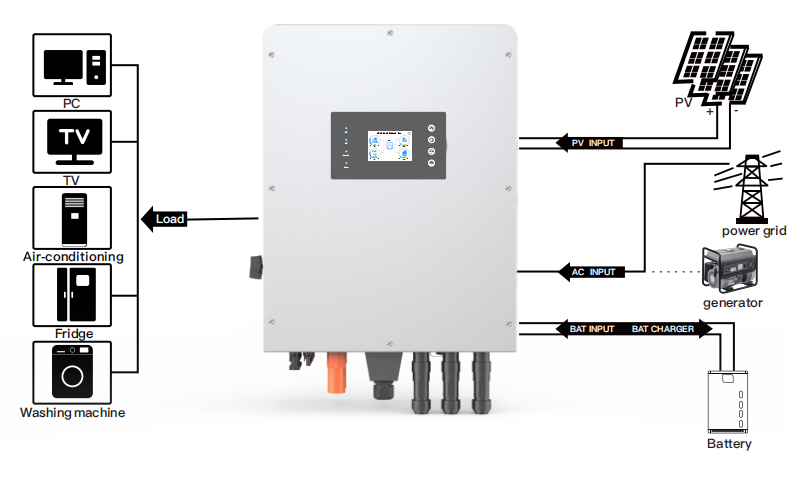

Basic System Architecture

Data Sheet

Model	HCC01-SM-0100H-EP	HCC01-SM-0120H-EP
Battery Input Data
Battery Type	Lead-acid or Li-lon
Battery Voltage Range(V)	40-60
Max.Charging Current(A)	220	250
Max.Discharging Current(A)	220	250
Charging Curve	3 Stages/Equalization
External Temperature Sensor	yes
Charging Strategy for Li-lon Battery	Self-adaption to BMS
PV String Input Data
Max.DC Input Power(W)	13000	15600
PV Input Voltage(V)	370V(125V~500V)
MPPT Range(V)	150~425V
Full Load DC Voltage Range	200~425V
Start-up Voltage(V)	125V
PVInput Current(A)	26+26+26	26+26+26
No.of MPPT Trackers	3	3
No.of Strings Per MPPT Tracker	1+1+1	1+1+1
ACInput/Output Data
Rated AC Output and UPS Power(W)	10000	12000
Max.AC Output Power(W)	11000	13200
Peak Power(o ffgrid)	2 times of rated power,10 S
AC Input/Output Rated Current(A)	45.5/43.5	54.6/52.2
Max.AC Input/Output Current(A)	50/47.9	60/57.4
Max.Continuous AC Passthrough(A)	60	60
Power Factor	0.8 leading-0.8 lagging
Output Frequency and Voltage	50/60Hz;220/230Vac
Grid Type	Single Phase
Total Harmonic Distortion (THDi)	<3%(of nominal power)
DC current injection	<0.5%In
Efficiency
Max.Efficiency	97.60%
Euro Efficiency	96.50%
MPPT Efficiency	>99%
Protection
PVArc Fault Detection	Integrated
PV Input Lightning Protection	Integrated
Anti-islanding Protection	Integrated
PV String Input Reverse Polarity Protection	Integrated
Insulation Resistor Detection	Integrated
Residual Current Monitoring Unit	Integrated
Output Over Current Protection	Integrated
Output Shorted Protection	Integrated
Over Voltage Category	Integrated
Surge Protection	DC Typel/AC Type ll
Over Voltage Category	DC Type l/AC Type II
Certifications and Standards
Grid Regulation	IEC61727/IEC 62116,EN 50549-1
Safety EMC/Standard	IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2
General Data
Operating Temperature Range(℃)	-40~60℃,>45℃ Derating
Cooling	Smart cooling
Noise(dB)	<50 dB
Communication with BMS	Rs485;CAN
Monitoring mode	WIFI, APP
Weight(kg)	31
Cabinet size(mm)	446W×576H×254D(Excluding connectors and brackets)
Protection Degree	IP66
Installation Style	Wall-mounted
Warranty	5Years(10 Years Optional)
