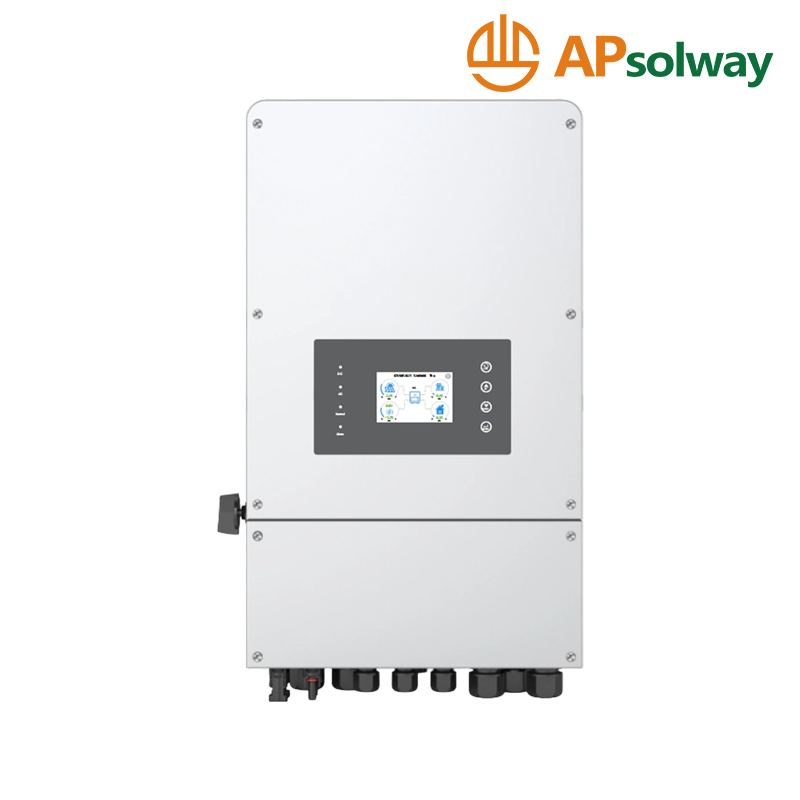

HCC01-SM-0060H-EP-D High Reliability Single Phase Hybrid Inverter

Model

HCC01-SM-0060H-EP-D

PV String Input Data

Max.DCInput Power(W)

7800

Rated PV Input Voltage(V)

370(125~500)

Start-up Voltage(V)

125

MPPT Voltage Range(V)

150-425

Full Load MPPT Voltage Range(V)

200-425

Max.DCInput Current(A)

13+13

Max.PV Isc(A)

22+22

No.of MPPT Trackers

2

No.of Strings per MPPT Tracker

1+1

AC Input/Output Data

Rated AC Output Power(W)

6000

MaxAC Output Power(W)

6600

AC Input/Output Rated Current(A)

27.3/26.1

Max.AC Input/Output Current(A)

30/28.7

Max.Continuous AC Passthrough(A)

40

Peak Power(off grid)

2 times of rated power,10 S

Power Factor

0.8 leading-0.8 lagging

AC Output Frequency and Voltage

50/60Hz;220/230Vac

Grid Type

Single Phase

Total Harmonic Distortion(THDi)

<3%(of nominal power)

DC Current Injection

<0.5%(Rated Current)

Battery Input Data

Battery Type

Lead-acid or Lithium-ion

Battery Voltage Range(V)

40~60

Max.Charging Current(A)

135

Max.Discharging Current(A)

135

External Temperature Sensor

Yes

Charging Curve

3 Stages/Equalization

Charging Strategy for Li-lon Battery

Self-adaption to BMS

Efficiency

Max.Efficiency

97.60%

Euro Efficiency

96.50%

MPPT Efficiency

99%

Protection

Anti-islanding Protection

Yes

PV String Input Reverse Polarity Protection

Yes

Insulation Resistor Detection

Yes

Residual Current Monitoring Unit

Yes

Output Over Current Protection

Yes

Output Shorted Protection

Yes

Surge Protection

DC Type II/AC Typell

Over Voltage Category

DC Typel/AC TypeⅢ

Certifications and Standards

Grid Regulation

IEC61727/IEC 62116,EN 50549-1

Safety EMC/Standard

IEC/EN 61000-6-1/2/3/4,IEC/EN 62109-1,IEC/EN 62109-2

General Data

Operating Temperature Range(℃)

-40-60℃,>45℃ Derating

Cooling

Smart Cooling

Noise(dB)

≤50 dB

Communication with BMS

RS485;CAN

Monitoring mode

WIFI, APP

Weight(kg)

24

Size(W×HxDmm)

340W×575Hx255D(Excluding connectors and brackets)

Protection Degree

IP66

Installation Style

Wall-mounted

Warranty

5 Years(10Years Optional)
