1. Colorful touch LCD, lP66 protection degree, Max. 16 pcs parallel for on-grid and off-grid operation.
2. Ac coupling to retrofit existing solar system, support multiple batteries parallel.
3. Max.charging/discharging current of 135A, 6 time periods for battery charging/discharging.
4. Support storing energy from diesel generator.
Wide Power Supply Compatibility.
Single-phase motors can directly use common 220V/230V single-phase AC power.
No three-phase power grid is required, making installation and use more convenient, suitable for home and small commercial users.
Simple Structure and Small Size.
Compact structure, easy to install and maintain.
Commonly used in fans, water pumps, air conditioners, household appliances, etc.


Colorful touch LCD, Ip66 protection degree	Ac coupling to retrofit existing solar system	Max. 16 pcs parallel for on-grid and off-grid operation; Support multiple batteries parallel

Max. charging/discharging current of 135A	6 time periods for battery charging/discharging	Support storing energy from diesel generator

Certifications

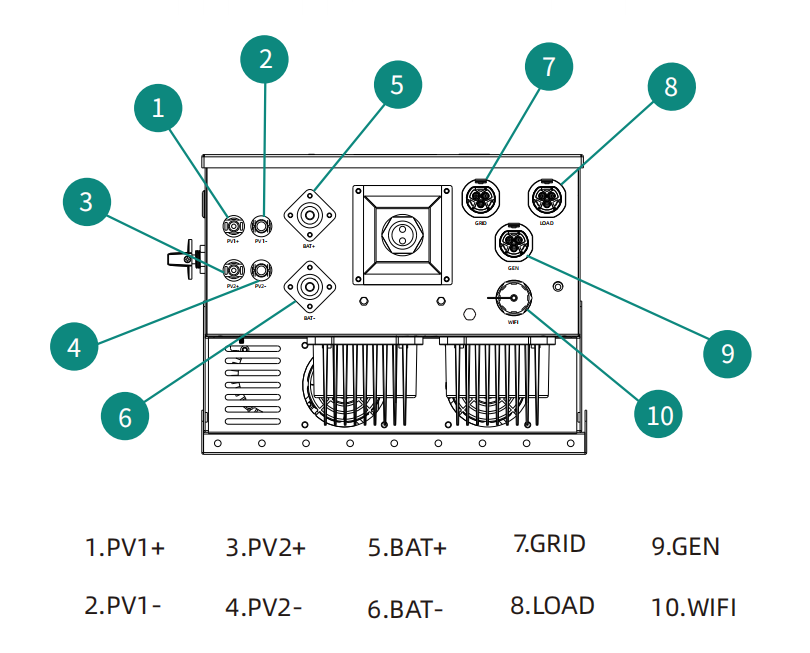

Product Characteristics

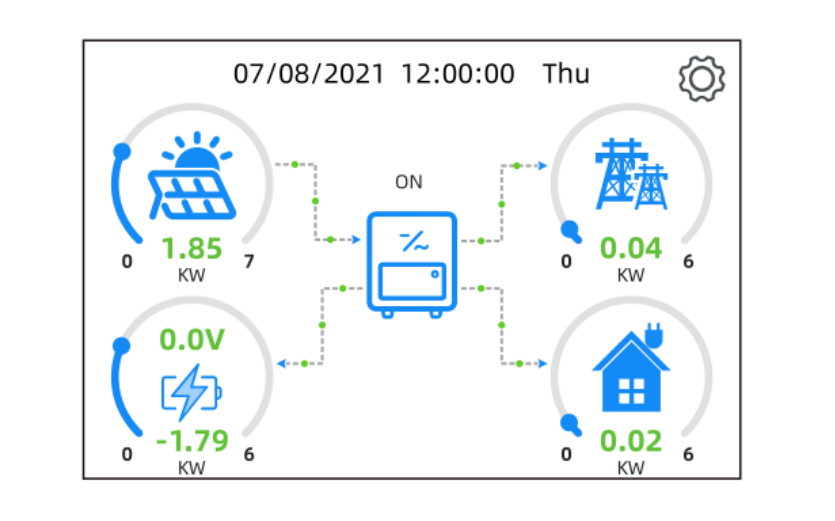

Lcd Display Icons

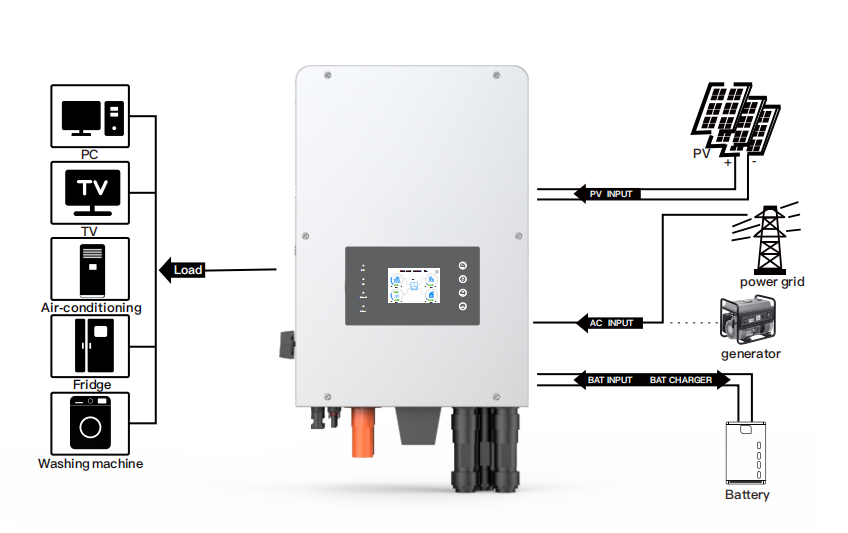

Basic System Architecture

Data Sheet

Model	HCC01-SM-0060H-EP
PV String Input Data
Max.DCInput Power(W)	7800
Rated PV Input Voltage(V)	370(125~500)
Start-up Voltage(V)	125
MPPT Voltage Range(V)	150-425
Full Load MPPT Voltage Range(V)	200-425
Max.DC Input Current(A)	13+13
Max.PV Isc(A)	22+22
No.of MPPT Trackers	2
No.of Strings per MPPT Tracker	1+1
ACInput/Output Data
Rated AC Output Power(W)	6000
Max AC Output Power(W)	6600
AC Input/Output Rated Current(A)	27.3/26.1
Max.AC Input/Output Current(A)	30/28.7
Max.Continuous AC Passthrough (A)	40
Peak Power(off grid)	2 times of rated power,10 S
Power Factor	0.8 leading-0.8 lagging
AC Output Frequency and Voltage	50/60Hz;220/230Vac
Grid Type	Single Phase
Total Harmonic Distortion(THDi)	<3%(of nominal power)
DC Current Injection	<0.5%(Rated Current)
Battery Input Data
Battery Type	Lead-acid or Lithium-ion
Battery Voltage Range(V)	40~60
Max.Charging Current(A)	135
Max.Discharging Current(A)	135
External Temperature Sensor	Yes
Charging Curve	3 Stages/Equalization
Charging Strategy for Li-lon Battery	Self-adaption to BMS
Efficiency
Max.Efficiency	97.60%
Euro Efficiency	96.50%
MPPT Efficiency	99%
Protection
Anti-islanding Protection	Yes
PV String Input Reverse Polarity Protection	Yes
Insulation Resistor Detection	Yes
Residual Current Monitoring Unit	Yes
Output Over Current Protection	Yes
Output Shorted Protection	Yes
Surge Protection	DC Type II/AC Type ll
Over Voltage Category	DC Typell/AC TypeⅢ
Certifications and Standards
Grid Regulation	IEC61727/IEC 62116,EN 50549-1
Safety EMC/Standard	IEC/EN 61000-6-1/2/3/4,IEC/EN 62109-1,IEC/EN 62109-2
General Data
Operating Temperature Range(℃)	-40-60℃,>45℃ Derating
Cooling	Smart Cooling
Noise(dB)	≤50 dB
Communication with BMS	RS485;CAN
Monitoring mode	WIFI, APP
Weight(kg)	24
Size(W×HxDmm)	346Wx506Hx255D(Excluding connectors and brackets)
Protection Degree	IP66
Installation Style	Wall-mounted
Warranty	5 Years(10Years Optional)
