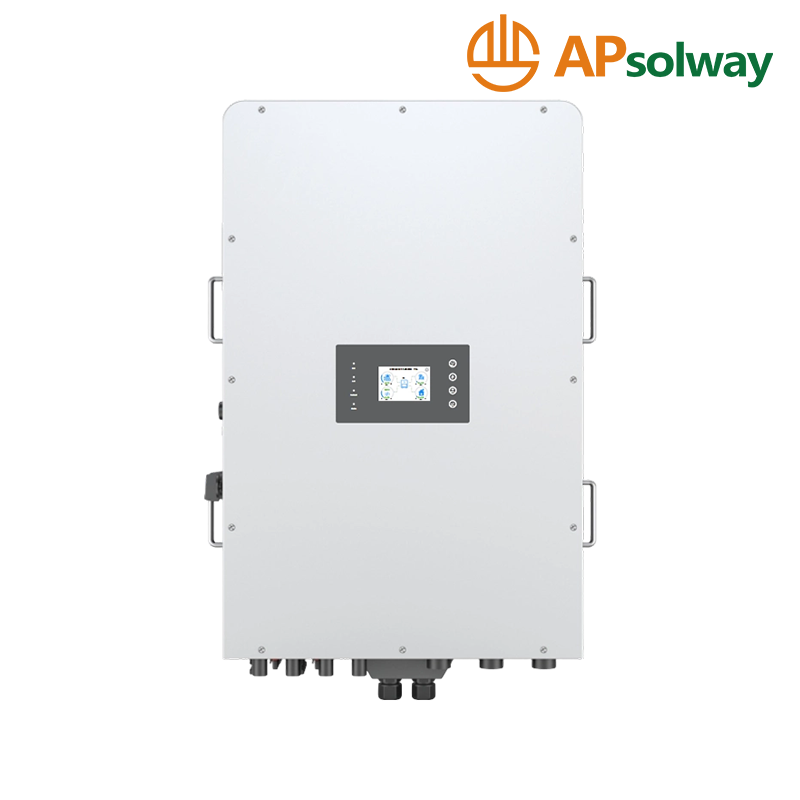

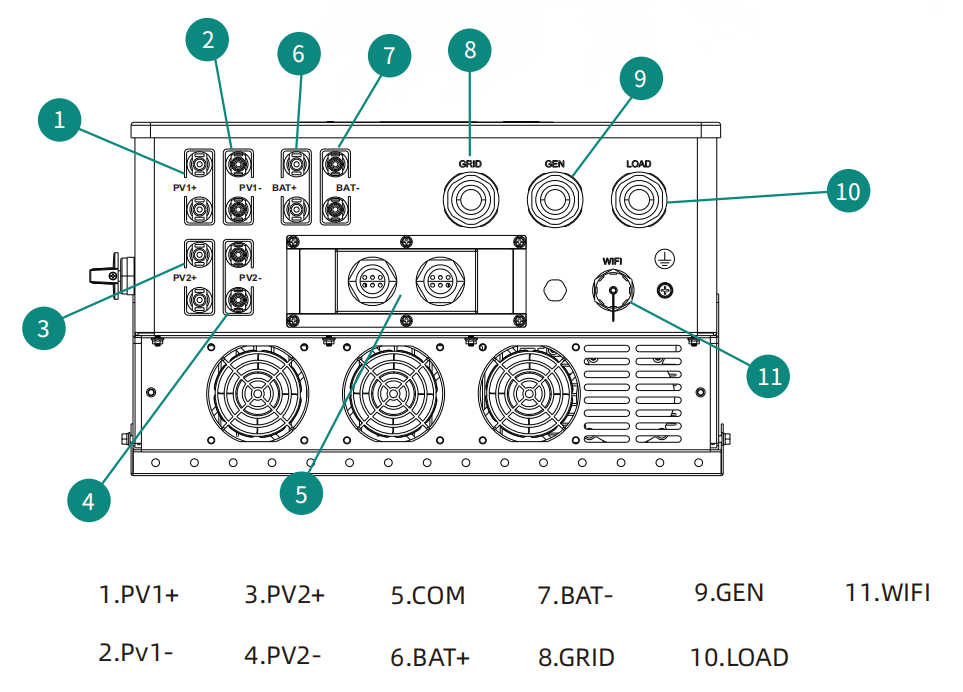

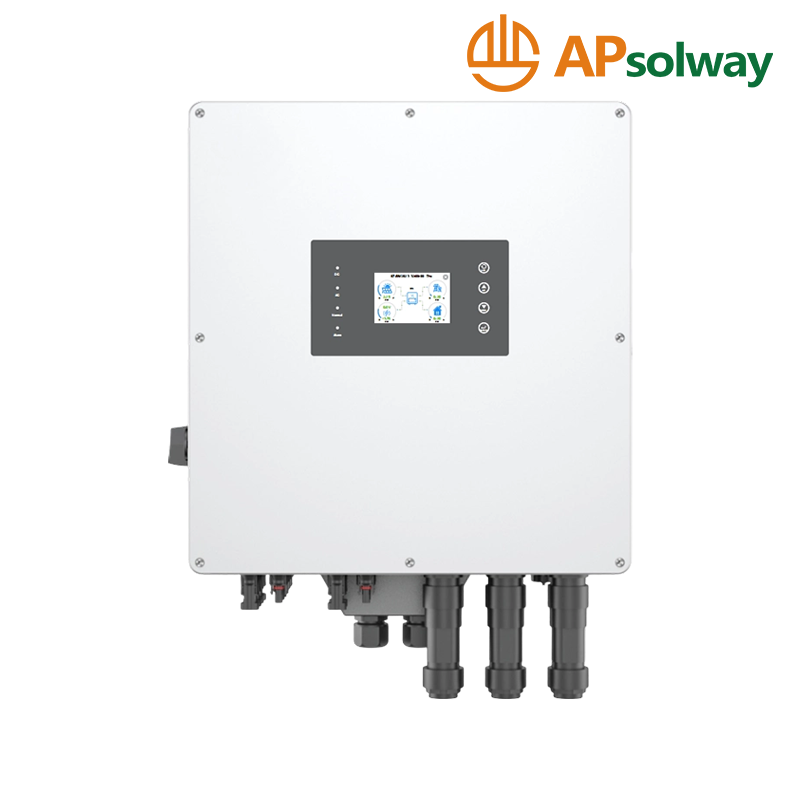

HCC01-TH-0100/0200H-EP High Voltage Battery Three Phase Hybrid Inverter

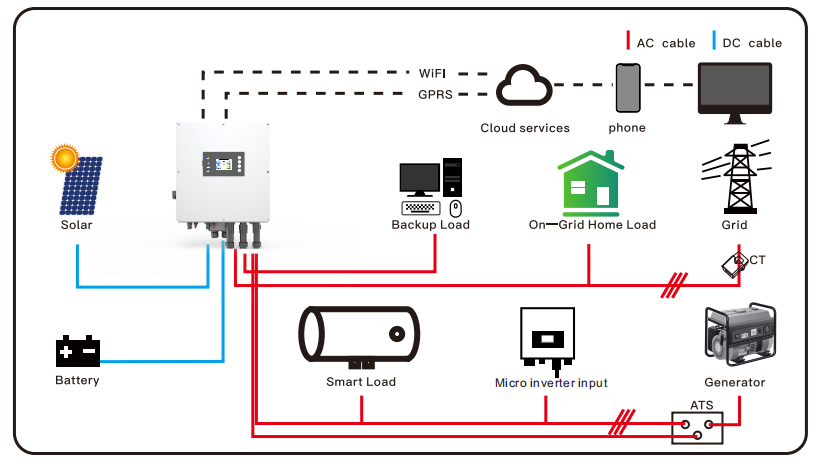

100% three-phase unbalanced output, with each phase capable of delivering up to 50% of the rated power

Max. charging/discharging current of 135A

Support storing energy from diesel generator

Model

HCC01-TH-0080H-EP

HCC01-TH-0100H-EP

HCC01-TH-0150H-EP

HCC01-TH-0100H-EP

HCC01-TH-0250H-EP

PV String Input

Max.DCInput Power(W)

10400

13000

19500

26000

32500

Max.DC Input Voltage(V)

1000

Start-up Voltage(V)

180

MPPT Range(V)

150-850

Rated DC Input Voltage(V)

600

700

PV Input Current(A)

20+20

26+26

Max.PV Isc(A)

30+30

39+39

No.of MPPT Trackers

2

No.of Strings per MPPT Tracker

1+1

2+2

AC Input/Output Data

Rated AC Output Power(W)

8000

10000

15000

20000

25000

Max.AC Output Power(W)

8800

11000

16500

22000

27500

AC Input/Output Rated Current(A)

12.2/11.6

15.2/14.5

22.8/21.8

30.4/29.0

37.9/36.3

Max.AC Input/Output Current(A)

13,412.8

16.7/16

25.0/24.0

33.4/31.9

41.7/39.9

Max.Three-phase Unbalanced Output Current (A)

18

22

30.0

35.0

41.7

Max.Continuous AC Passthrough(A)

40

40

80

80

80

Peak Power (Off Grid)

1.5 times of rated power,10 S

Generator Input/SmartLoad/AC Couple Current(A)

12.2/40/12.2

15.2/40/15.2

22.8/80/22.8

30.4/80/30.4

37.9/80/37.9

Power Factor

0.8 leading-0.8 lagging

Output Frequency and Voltage

50/60Hz;3L/N/PE 220/380Vac,230/400Vac

Grid Type

Three Phase

Total Harmonic Distortion(THDi)

<3%

Battery

Battery Type

Lithium-ion

Battery Voltage Range(V)

160-700

Max.Charging Current(A)

37

50

Max.Discharging Current(A)

37

50

Number of Battery Input

1

Charging Strategy for Li-Ion Battery

Self-adaption to BMS

Efficiency

Max.Efficiency

97.6%

Euro Efficiency

97.0%

MPPT Efficiency

99.9%

Protection

Anti-islanding Protection

Yes

PV String Input Reverse Polarity Protection

Yes

Insulation Resistor Detection

Yes

Residual Current Monitoring Unit

Yes

Output Over Current Protection

Yes

Output Shorted Protection

Yes

Surge Protection

Yes

Arc Fault Circuit Interruption(AFCI optional)

Yes

Over Voltage Protection

Yes

Certifications and Standards

Grid Regulation

IEC61727/62116,EN50549-1

Safety EMC/Standard

IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2

General Data

Operating Temperature Range(℃)

-25℃~+60℃

Cooling

Smart Cooling

Noise(dB)

<55 dB

Communication with BMS

CAN

Monitoring mode

WIFI, APP

Size(WxHXD mm)

456W×566H×255D(Excluding Connectors and Brackets)

Weight(kg)

30

Ingress Protection

IP66

Installation Style

Wall-mounted

Warranty

5 Years(10 Years Optional)
