Custom HCC01-TH-0300/0400/0500H-EP Three Phase Hybrid Inverter
Home / Products / Solar Inverter / Solar Hybrid Inverter / Three Phase Hybrid Inverter / HCC01-TH-0300/0400/0500H-EP Three Phase Hybrid Inverter
  • HCC01-TH-0300/0400/0500H-EP Three Phase Hybrid Inverter
  • HCC01-TH-0300/0400/0500H-EP Three Phase Hybrid Inverter
Three Phase Hybrid Inverter

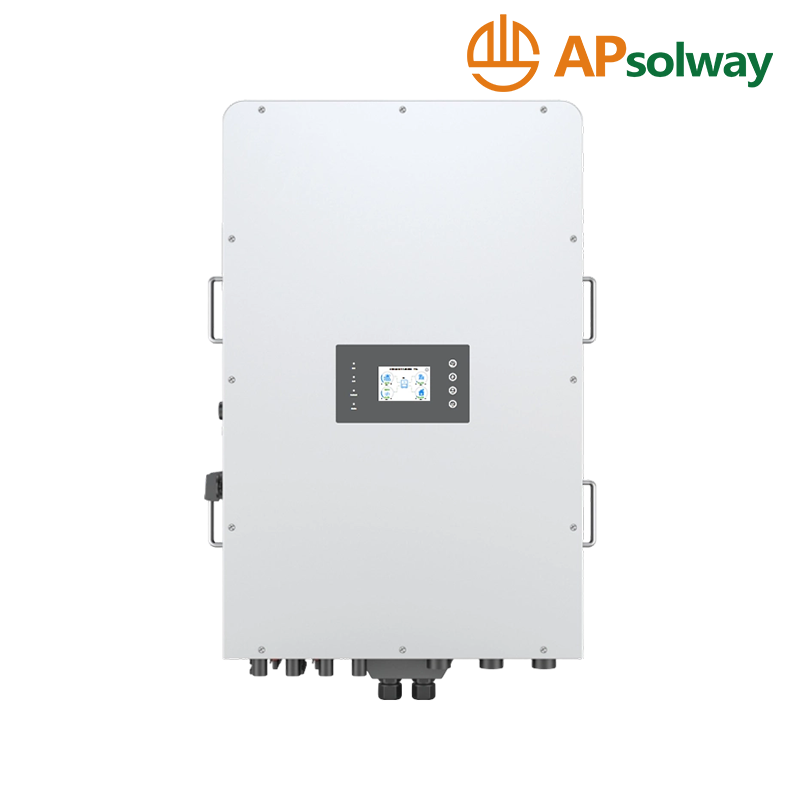

HCC01-TH-0300/0400/0500H-EP Three Phase Hybrid Inverter

  • Multiple Protection Functions.

  • Built-in overvoltage, undervoltage, overload, short circuit, and overtemperature protection to ensure the safety of the inverter and grid equipment.

  • Provides reliable protection for industrial and residential loads, reducing safety risks.

  • 1. 100% unbalanced output, max. output up to 50% rated power for each phase, Max. charging/discharging current of 50A.

  • 2. Support storing energy from diesel generator, High voltage battery higher efficiency.

  • 3. Max. 10 pcs parallel for on-grid and off-grid operation; Support multiple batteries parallel.

  • 4. AC coupling to retrofit existing solar system, 6 time periods for battery charging/discharging.
Contact Us
Technical Parameters
Product Parameters

100% three-phase unbalanced output, with each phase capable of delivering up to 50% of the rated power

 Ac coupling to retrofit existing solar system Max. 16 pcs parallel for on-grid and off-grid operation; Support multiple batteries parallel

Max. charging/discharging current of 135A

 48V low-voltage battery. transformer isolation design 6 time periods for battery charging/discharging

Support storing energy from diesel generator



Certifications

Product Characteristics

Lcd Display Icons

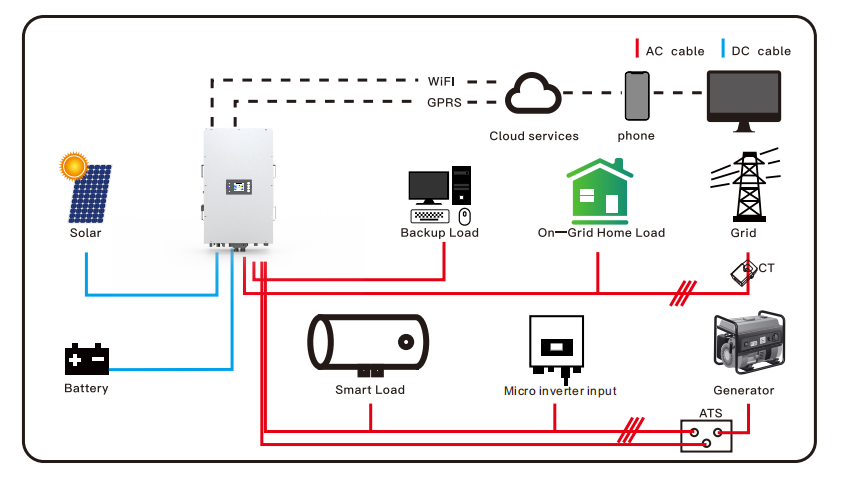

Basic System Architecture

Data Sheet

Model

HCC01-TH-0300H-EP

HCC01-TH-0400H-EP

HCC01-TH-0500H-EP

PV String Input

Max.DCInput Power(W)

39000

52000

65000

Max.DC Input Voltage(V)

1000

Start-up Voltage (V)

180

MPPT Range (V)

150-850

Full Load MPPT Voltage Range(V)

360-850

360-850

450-850

Rated DC Input Voltage(V)

600

PVInput Current(A)

36+36+36

36+36+36+36

Max.PV Isc(A)

55+55+55

55+55+55+55

No.of MPPT Trackers

3

4

No.of Strings per MPPT Tracker

2+2+2

2+2+2+2

ACInput/Output Data

Rated AC Output Power(W)

30000

40000

50000

Max.AC Output Power(W)

33000

44000

55000

AC Input/Output Rated Current(A)

45.5/43.5

60.7/58.0

75.8/72.5

Max.AC Input/Output Current(A)

50/47.9

66.7/63.8

83.4/79.8

Max.Three-phase Unbalanced Output Current (A)

60

70

83.4

Max.Continuous AC Passthrough(A)

200

200

200

Peak Power (Off Grid)

1.5 times of rated power,10 S

Power Factor

0.8 leading-0.8 lagging

Output Frequency and Voltage

50/60Hz;3L/N/PE 220/380Vac 230/400Vac

Grid Type

Three Phase

Total Harmonics Distortion(THDi)

<3%(of nominal power)

DC Current Injection

<0.5%In

Battery

Battery Type

Lithium-ion

Battery Voltage Range(V)

160-800

Max.Charging Current(A)

50+50

Max.Discharging Current (A)

50+50

Number of Battery Input

2

Charging Strategy for Li-lon Battery

Self-adaption to BMS

Efficiency

Max. efficiency

97.6%

Euro efficiency

97.0%

MPPTefficiency

>99%

Protection

Anti-islanding Protection

Yes

PV String Input Reverse Polarity Protection

Yes

Insulation Resistor Detection

Yes

Residual Current Monitoring Unit

Yes

Output Over Current Protection

Yes

Output Shorted Protection

Yes

Surge Protection

Yes

Arc Fault Circuit Interruption(AFCI optional)

Yes

Over Voltage Category

DC Type I/AC Type ll

Certifications and Standards

Grid Regulation

IEC61727/62116,EN50549-1

Safety EMC/Standard

IEC/EN 61000-6-1/2/3/4,IEC/EN 62109-1,IEC/EN 62109-2

General Data

Operating Temperature Range(℃)

-40-60℃,>45°℃ Derating

Cooling

Smart Cooling

Noise(dB)

≤70 dB

Communication with BMS

CAN

Monitoring mode

WIFI, APP

Weight(kg)

82.5

Size(WxHxD mm)

537W×888H×320.5D(Excluding Connectors and Brackets)

Ingress Protection

IP66

Installation Style

Wall-mounted

Warranty

5Years(10 Years Optional)
