1. Colorful touch LCD, IP66 protection degree, 6 time periods for battery charging/discharging.
2. Max.16 pcs parallel for on-grid and off-grid operation, Support mutiple batteries parallel.
3. Support storing energy from diesel generator, Ac coupling to retrofit existing solar system.
Hybrid design, flexible energy utilization.
Supports photovoltaic power generation, battery energy storage, and grid complementarity.
The system can intelligently schedule energy: prioritizing solar power during the day, and using battery storage to handle nighttime or power outages, reducing electricity costs.


Colorful touch LCD, Ip66 protection degree	Ac coupling to retrofit existing solar system	Max. 16 pcs parallel for on-grid and off-grid operation; Support multiple batteries parallel

6 time periods for battery charging/discharging	Support storing energy from diesel generator

Certifications

Product Characteristics

Lcd Display Icons

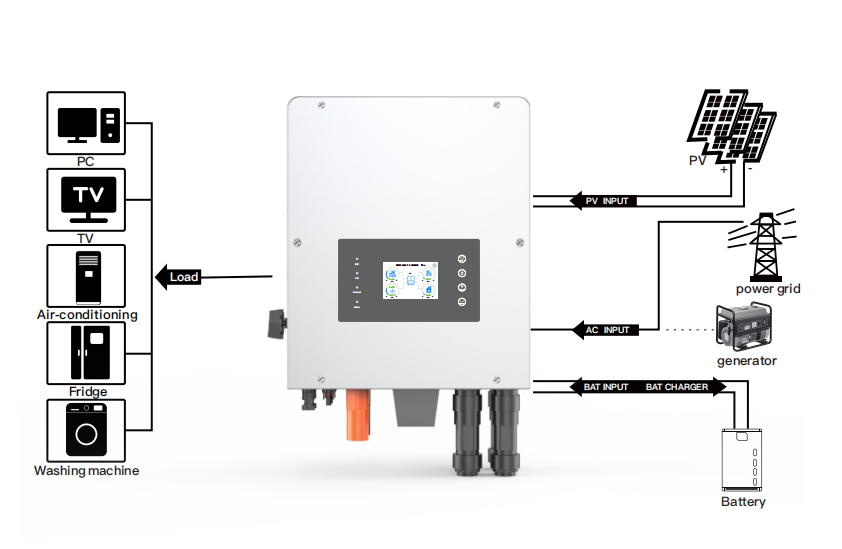

Basic System Architecture

Data Sheet

Model	HICC05-SM-0050H-E	HCC05-SM-0060H-EP	HCC05-SM-0080H-EP
Battery Input Data
Battery Type	Lead-acid or Li-lon
Battery Voltage Range(V)	40-60	40-60	40-60
Max.Charging Current(A)	120	135	190
Max.Discharging Current(A)	120	135	190
Charging Curve	3 Stages/Equalization
External Temperature Sensor	Yes
Charging Strategy for Li-lon Battery	Self-adaption to BMS
PV String Input Data
Max.DC Input Power(W)	6500	7800	10400
PV Input Voltage(V)	370V(125V-500V)
MPPT Range(V)	150-425V
Full Load DC Voltage Range	300-425V
Start-up Voltage(V)	125V
PVInput Current(A)	18+18	18+18	26+26
Max.PV Isc(A)	27+27	27+27	34+34
No.of MPPT Trackers	2	2	2
No.of Strings Per MPPT Tracker	1+1	1+1	1+1
AC Input/Output Data
Rated AC Output and UPS Power(W)	5000	6000	8000
Max.AC Output Power(W)	5500	6600	8800
Peak Power(off grid)	2 times of rated power,10S
AC Input/Output Rated Current(A)	22.8/21.8	27.3/26.1	36.4/34.8
Max.AC Input/Output Current(A)	25/24	30/28.7	40/38.3
Max.Continuous AC Passthrough(A)	35	40	50
Power Factor	0.8leading to 0.8 lagging
Output Frequency and Voltage	50/60Hz;220/230Vac
Grid Type	Single Phase
Total Harmonic Distortion(THDi)	<3%(of nominal power)
DC current injection	<0.5%In
Efficiency
Max.Efficiency	97.60%
Euro Efficiency	96.50%
MPPT Efficiency	>99%
Protection
PVArc Fault Detection	Integrated
PV Input Lightning Protection	Integrated
Anti-islanding Protection	Integrated
PV String Input Reverse Polarity Protection	Integrated
Insulation Resistor Detection	Integrated
Residual Current Monitoring Unit	Integrated
Output Over Current Protection	Integrated
Output Shorted Protection	Integrated
Surge Protection	DC Type Il/AC TypeIl
Over Voltage Category	DC Type ll/AC TypeⅢ
Certifications and Standards
Grid Regulation	IEC61727/62116,EN50549-1
EMC/Safety Regulation	IEC/EN61000-6-1/2/3/4,IEC/EN 62109-1,IEC/EN 62109-2
General Data
Operating Temperature Range(℃)	40-60℃,>45℃ Derating
Cooling	Smart cooling
Noise(dB)	<50 dB
Communication with BMS	RS485;CAN
Monitoring mode	Wi-Fi+APP
Weight(kg)	19		24
Cabinet size(mm) (Excluding connectors and brackets)	346W×416H×250D (Excluding connectors and brackets)		346W×516H×250D (Excluding connectors and brackets)
Ingress Protection Degree	IP66
Installation Style	Wall-mounted
Warranty 5 Years

Let's a Talk

Keep in touch with us

Product Application

Applicable Fields

Related Products

About Us

APsolway Technology

Altenergy Power System Inc. is a high-tech manufacturer specializing in power electronics. The company is publicly listed on the SSE STAR Market (Stock Code: 688348). Headquartered in Jiaxing, Zhejiang Province, it also operates a production base in the same city. To support its global reach, the company has established branches and subsidiaries in key international markets, including Texas (USA), Leipzig (Germany), Amsterdam (Netherlands), Brisbane (Australia), Paris (France), Mexico, and other major regions. Zhejiang APsolway Technology Co., Ltd., a subsidiary of Altenergy Power System Inc., focuses on residential energy storage solutions. As HCC05-SM-0060/0080H-EP High Compatibility Single Phase Hybrid Inverter Manufacturers, the company is dedicated to the research, development, and production of hybrid and off-grid inverters, offering single-phase, three-phase, and split-phase models ranging from 3 to 20 kW.
As a leading provider of residential solar energy storage solutions, HCC05-SM-0060/0080H-EP High Compatibility Single Phase Hybrid Inverter Factory in China, APsolway stands out with innovative designs and a range of unique, differentiated features. We also offer OEM/ODM services and can deliver fully customized solutions to meet our customers’ specific needs.

Follow news and information to stayinformed about industry trends.

Language

+86-13819379269

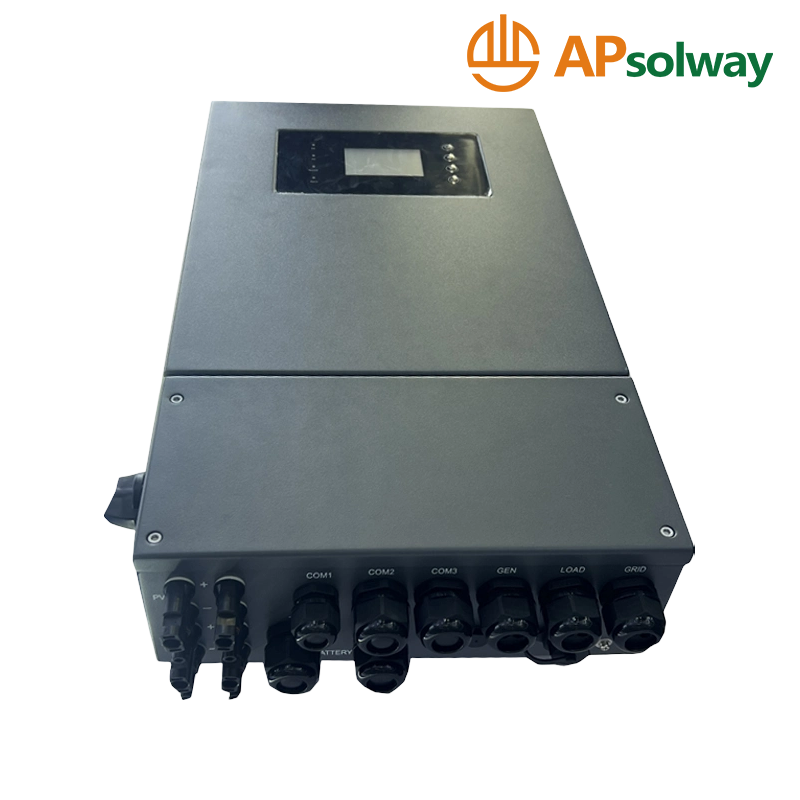

HCC05-SM-0060/0080H-EP High Compatibility Single Phase Hybrid Inverter
