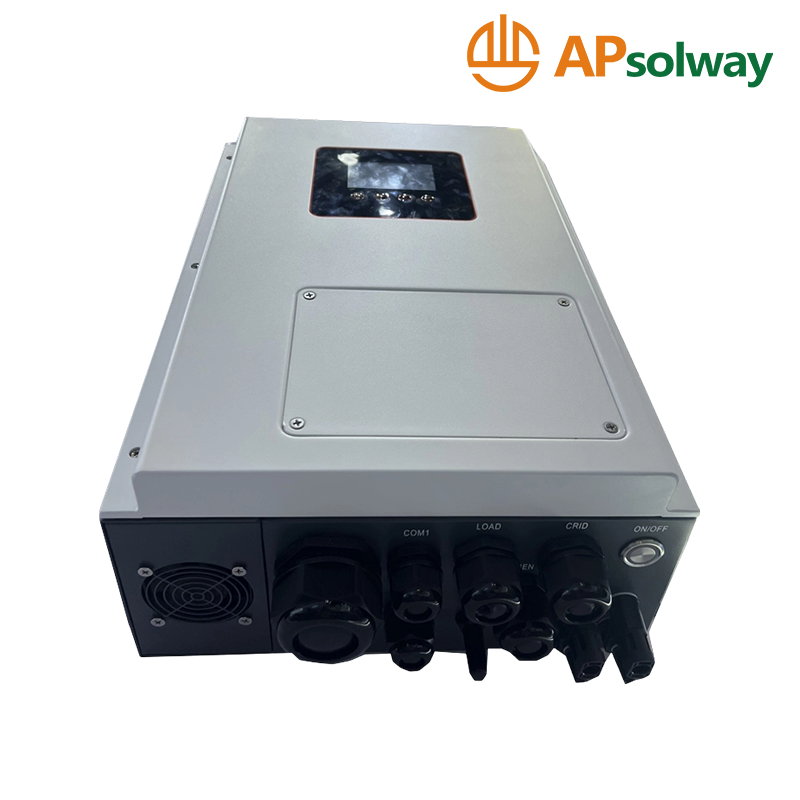

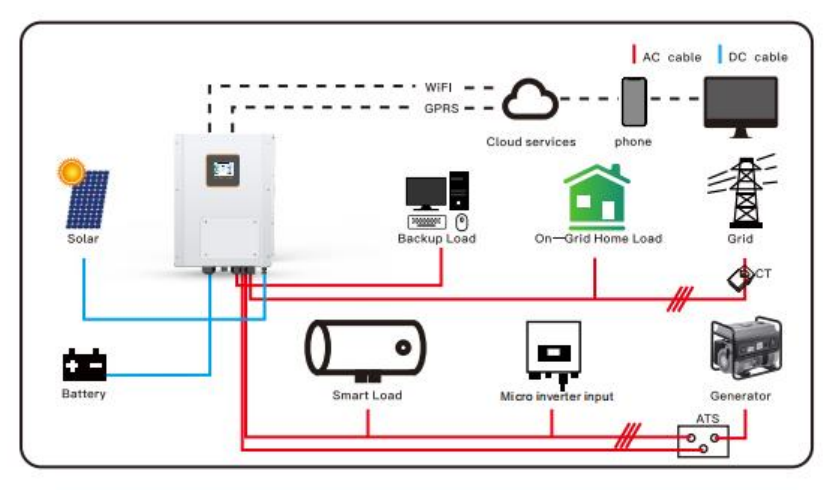

HCC04-SM-0060H-YP High Efficiency Single Phase Hybrid Inverter

Model

HCC04-SM-0060H-YP

Battery Input Data

Battery Type

Lead-acid or Lithium-ion

Battery Voltage Range(V)

40-60

Max.Charging Current(A)

90

120

135

Max.Discharging Current(A)

90

120

135

Charging Strategy for Li-lon Battery

Self-adaption to BMS

Number of Battery Input

1

PV String Input Data

Max.PV access Power(W)

7200

10000

12000

Max.PV Input Power(W)

5760

6500

9600

Max.PV Input Voltage(V)

500

Start-up Voltage(V)

125

PVInputVoltage Range(V)

125-500

MPPT Voltage Range(V)

150~425

Full Load MPPT Voltage Range(V)

300~425

Rated PVInput Voltage(V)

370

Max.Operating PVInput Current(A)

18+18

Max.Input Short-Circuit Current(A)

27+27

No.of MPP Trackers/No.of Strings MPPTracker

2/1+1

Max.Inverter Backfeed Current to The Array

0

AC Input Data

Rated AC Input Active Power(W)

3600

5000

6000

Max.ACInput Active Power(W)

3960

5500

6600

Peak Power(off grid)(W)

2times of rated power,10s

Rated AC Input/Output Current(A)

16.4/15.7

22.8/21.8

27.3/26.1

Max.Rated AC Input/Output Current(A)

18/17.3

25/24

30/28.7

Max.Continuous AC Passthrough(grid to load)(A)

35

40

Max.Output Fault Current(A)

36

50

60

Max.Output Overcurrent Protection(A)

70

80

RatedInput Voltage/Range(V)

220V/230V 0.85Un-1.1Un

Grid Connection Form

L+N+PE

Rated Input Grid Frequency/Range

50Hz/45Hz-55Hz 60Hz/55Hz-65Hz

Total Hamonic Distortion(THDi)

<3%(of nominalpower)

DC Injection Current

<0.5%In

Efficiency

Max.Efficiency

97.60%

Euro Efficiency

96.50%

MPPTEfficiency

>99%

Equipment Protection

DC Polarity Reverse Connection Protection

Yes

AC Output Overcurrent Protection

Yes

AC Output Overvoltage Protection

Yes

AC Output Short Circuit Protection

Yes

ThermalProtection

Yes

DC Terminal Insulation Impedance Monitoring

Yes

DC Component Monitoring

Yes

Ground Fault Current Monitoring

Yes

Arc fault circuit interrupter(AFCI)

Optional

Power Network Monitoring

Yes

Island Protection Monitoring

Yes

Earth Fault Detection

Yes

DC Input Switch

Yes

Overvoltage Load Drop Protection

Yes

Residual Current(RCD)Detection

Yes

Surge Protection Level

Type lI(DC)/Type II(AC)

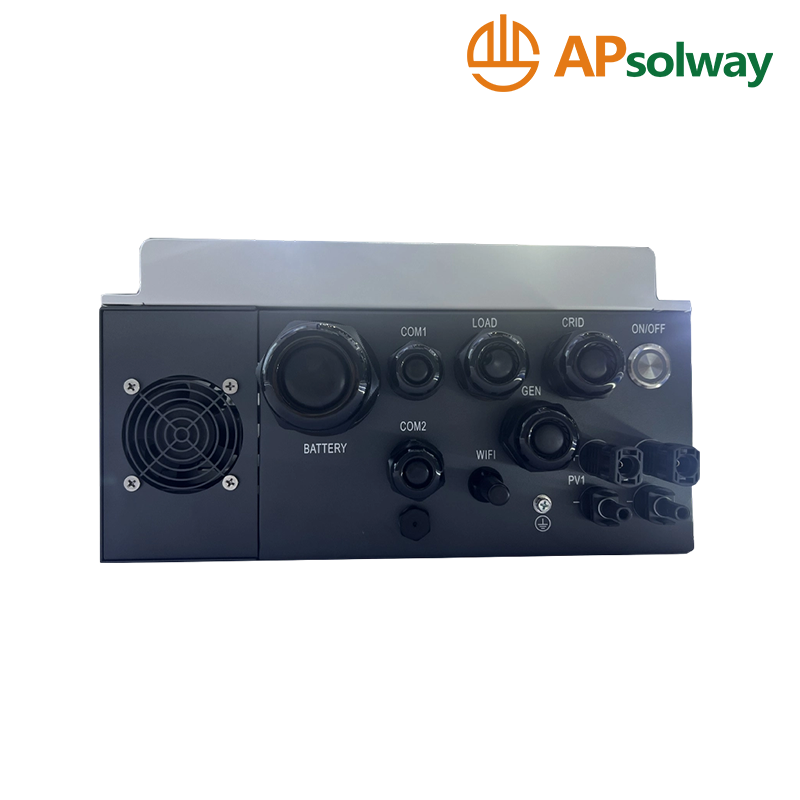

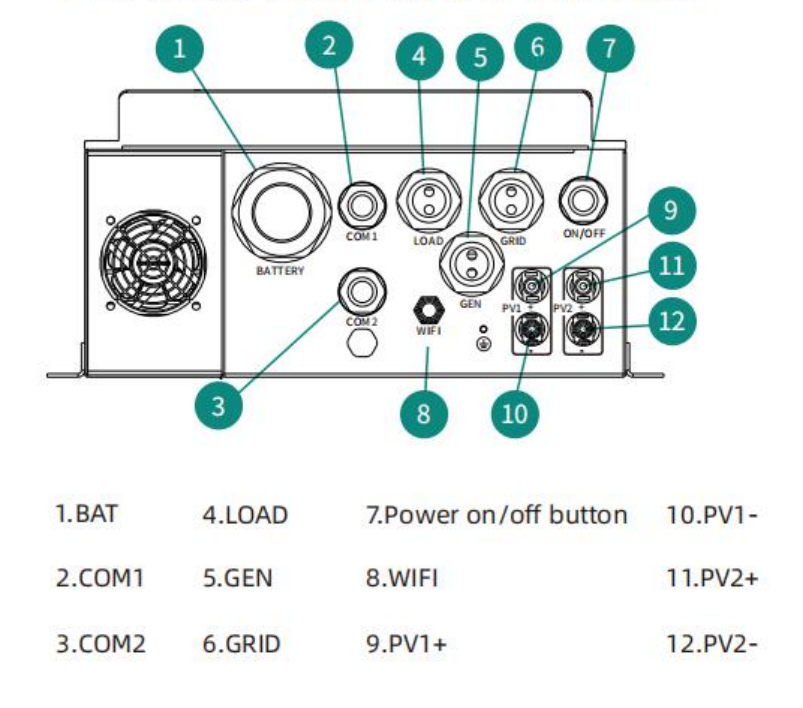

Interface

Display

LCD+LED

Communication Interface

RS232,RS485,CAN

Monitor Mode

GPRS/WIFI/Bluetooth/4G/LAN(optional)

General Data

Operating Temperature Range

-40 to+60℃,>45℃ Derating

Permissible Ambient Humidity

0-100%

Permissible Altitude

2000m

Noise(dB)

<30 dB

Ingress Protection(IP)Rating

IP 66

Inverter Topology

Non-lsolated

Over Voltage Category

OVCI(DC),OVCIⅢ(AC)

Weight(kg)

19

19

19

Cabinet size(mm)(W×H×D)
(Excluding connectors and brackets)

316×438×168.5

316×438×168.5

316×438×168.5

Warranty

5Years/10 Years
The Warranty Period Depends the Final Installation Site of lnverter, More Info Please Refer to Warranty Policy

Type of Cooling

Natural Cooling

Grid Regulation

IEC61727,IEC 62116,EN 50549

Safety EMC/Standard

IEC/EN 61000-6-1/2/3/4,IEC/EN62109-1,IEC/EN 62109-2
