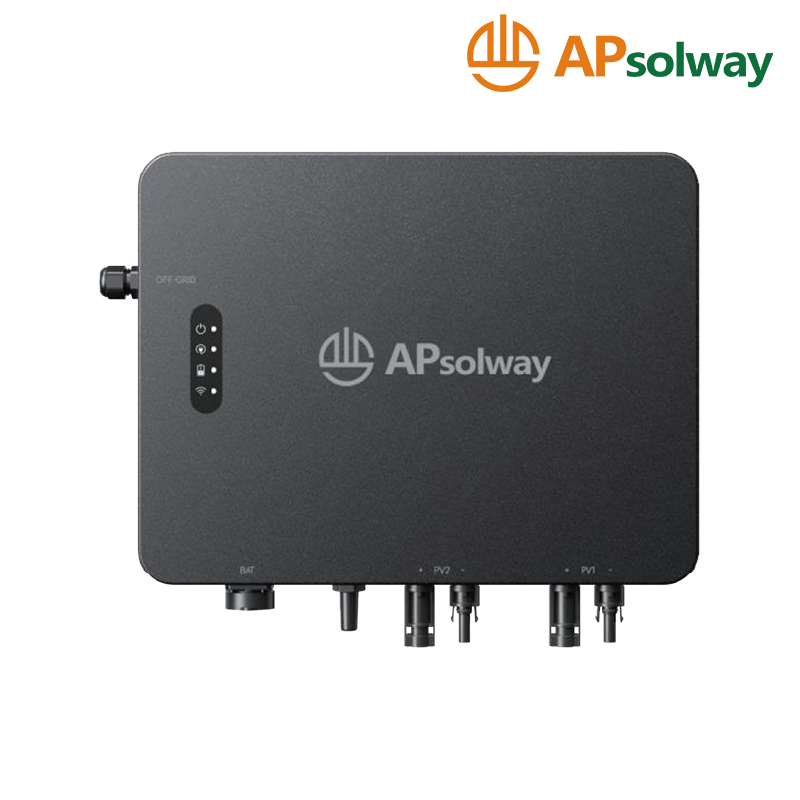

EZOG IP67 Single-phase Hybrid Microinverter for Storage

EZOG is a single-phase hybrid energy storage micro-inverter, specifically designed for 220V, 230V, and 240V voltage systems. A key technical highlight of this product is its integrated GaN (Gallium Nitride) chip, which enables it to support continuous fast charging at 40A, thereby significantly enhancing energy processing efficiency. Featuring a fanless design, the EZOG ensures ultra-quiet operation; combined with its system-wide IP67 protection rating, it is suitable for installation in a wide range of harsh outdoor environments—including AC-coupled applications for balcony-based micro-inverter systems.

In terms of performance specifications, the EZOG boasts a rated output power of 1200VA, with a peak output power reaching 1800VA within 10 seconds, ensuring excellent adaptability to load fluctuations. The PV input terminal is recommended for connection with modules ranging from 430Wp to 900Wp+, operating within an MPPT voltage range of 12V to 48V. The inverter supports 51.2V low-voltage battery inputs, featuring a maximum charging current of 40A and a peak discharge efficiency of up to 95.5%. Furthermore, the EZOG integrates a 24-hour intelligent energy management system, allowing users to utilize the built-in Wi-Fi and Bluetooth capabilities—via the AP EasyPower App—for convenient remote operation, maintenance, and real-time monitoring. With its compact dimensions and a weight of just 8kg, backed by a 5-year manufacturer's warranty, the EZOG represents an ideal choice for building intelligent, miniaturized home energy storage systems.
