Custom EZOG-LV IP67 US-standard Hybrid Microinverter for Storage
Home / Products / Solar Inverter / Off Grid Inverter / EZOG Series Single-Phase Hybrid Microinverter for Storage / EZOG-LV IP67 US-standard Hybrid Microinverter for Storage
  • EZOG-LV IP67 US-standard Hybrid Microinverter for Storage
  • EZOG-LV IP67 US-standard Hybrid Microinverter for Storage
EZOG Series Single-Phase Hybrid Microinverter for Storage

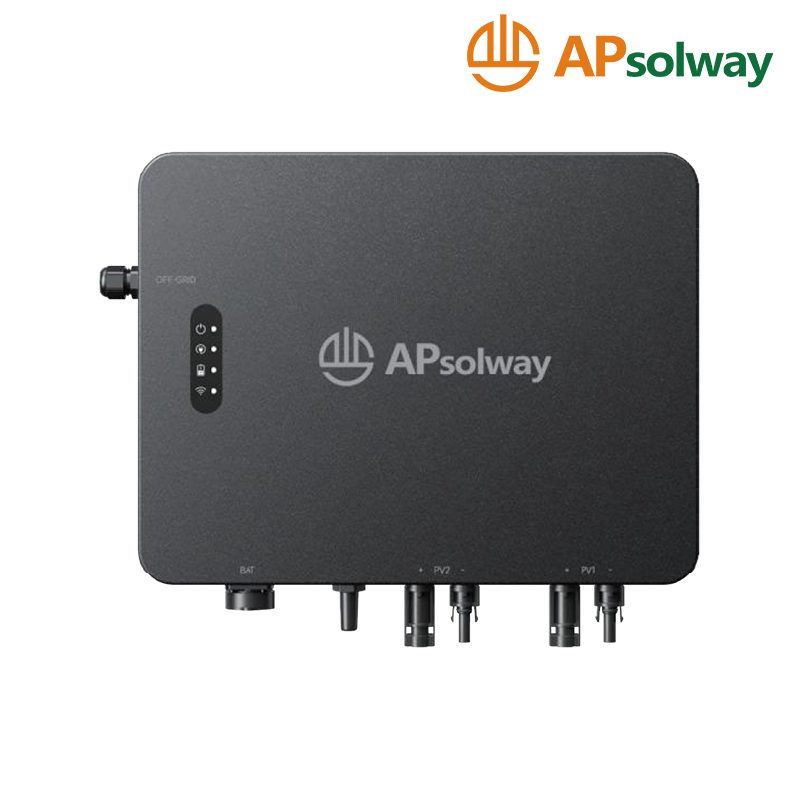

EZOG-LV IP67 US-standard Hybrid Microinverter for Storage

  • EZOG-LV is a US-standard hybrid energy storage micro-inverter developed specifically for the North American market and related regions, designed for compatibility with 110V, 120V, and 127V voltage systems. As a key member of Anyu Technology’s EZOG series, it integrates advanced technologies to support highly efficient energy conversion and storage operations. Upholding the series' core design philosophy of high performance and exceptional reliability, the EZOG-LV features natural convection cooling (fanless operation) and an IP67 dust and water protection rating; this ensures extremely quiet operation while effectively safeguarding the unit against harsh weather conditions.
  • In terms of technical specifications, the EZOG-LV offers a rated output capacity of 1000VA, with a peak output capability reaching 1500VA (sustained for 10 seconds). Its PV-side design offers great flexibility, featuring an MPPT voltage range of 12V–48V and a maximum continuous input current of 17A × 2. Regarding energy storage conversion efficiency, the EZOG-LV delivers outstanding performance, achieving a maximum efficiency of up to 96.2%. The device supports 51.2V low-voltage battery systems and boasts robust scalability, allowing for capacity expansion through the parallel connection of multiple battery packs. To enhance user experience, the EZOG-LV features a built-in dual-mode communication module (Wi-Fi + Bluetooth); when paired with the EMA intelligent O&M platform, it provides users with comprehensive, round-the-clock energy monitoring and management capabilities. The product features a compact design—weighing in at just 8 kg—ensuring quick and effortless installation.
Contact Us
Technical Parameters
Product Parameters
MODEL EZOG-LV
PV Input
Recommended PV Module Power(STC) Range(l) 430Wp-900Wp+
Operating voltage range 12V-60V
Maximum input voltage 60V
MPPT voltage range 12V-48V
Start-up voltage 18V
Maximum continuous input current 17A×2
Isc PV 25A×2
AC Input and Output(off-grid Port)
Grid type Single-phase
Nominal AC voltage(2) 110V/120V/127V
Nominal AC frequency(2) 60Hz
Maximum continuous output power 1000VA
Peak output apparent power 1500VA,10s
Maximum continuous output current 9.09A
Maximum continuous input power 1000VA
Maximum continuous input current 9.09A
Battery Ratings(Battery Port)
Battery voltage range 40-60VDC
Nominal battery voltage 51.2V
Communication Ports CAN
Maximum Continuous Discharge Power 1000VA
Peak Discharge Power 1500VA,10s
Maximum discharge current 27A
Maximum charge current 40A
General Specifications
Dimensions W/H/D 351mm×269mm×47mm
Weight 8KG
Maximum Efficiency 96.2%
Operating Ambient Temperature Range -40℃-55℃
Storage Temperature Range -40℃-85℃
Ingress Protection IP67
Warranty 5years
Relative Humidity 10%-90%
Cooling Natural Convection-No Fans
Maximum Altitude <2000m
Pollution Degree Classification PD3
Protective class I
Features
Communication Built-in Wi-Fi and Bluetooth
Energy Management AP Easy Power APP
Compliances
Safety, EMC Compliances IEC62109-1/-2;IEC62477-1;IEC 61000-6-1/-2/-3/-4;IEC 62920

Product specifications are subject to change without further notice.
