Custom 25.6V 100Ah Smart Control Wall-Mounted LiFePo4 Battery
Home / Products / Solar Battery / Lifepo4 Batteries / Wall-Mounted Lithium Battery / 25.6V 100Ah Smart Control Wall-Mounted LiFePo4 Battery
Wall-Mounted Lithium Battery

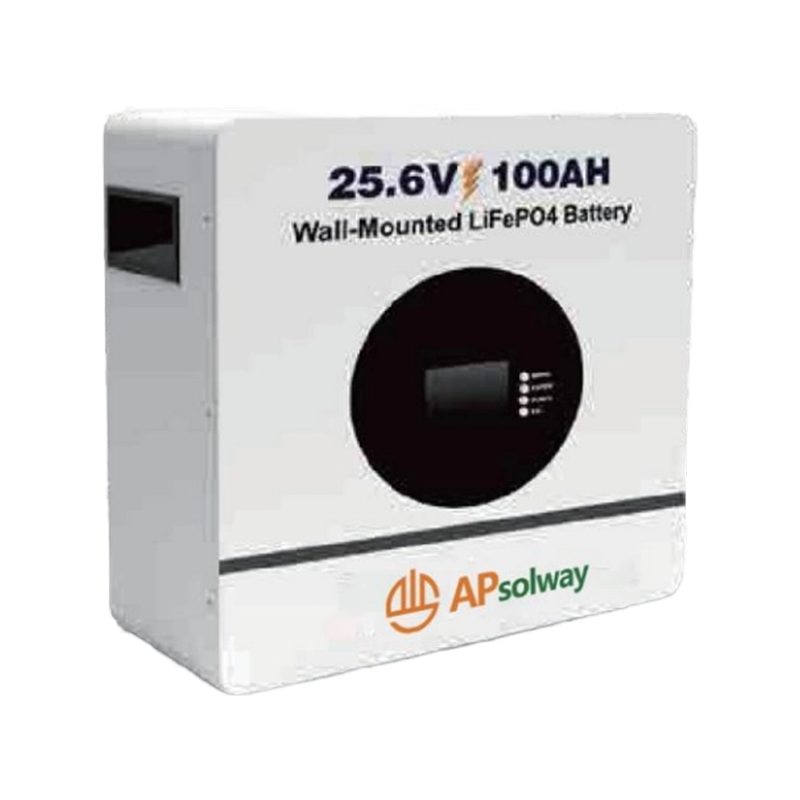

25.6V 100Ah Smart Control Wall-Mounted LiFePo4 Battery

  • BMS Protection
    High Capacity and Lightweight
    Wide Range of Applications
    Long Lifespan
    Easy Installation
    Multi-Brand Compatibility
    Capacity Expansion
    Smart Control

  • 25.6V 100Ah Smart Control Wall-Mounted LiFePO₄ Battery is an advanced energy storage solution designed to deliver high efficiency, reliability, and intelligent management.

  • Equipped with a comprehensive BMS protection system, it safeguards against overcharge, over-discharge, overcurrent, and short circuits, ensuring safe and stable operation under all conditions.

  • With its high capacity and lightweight design, this battery provides excellent energy density while being easy to mount on walls—saving space and simplifying installation.

  • The LiFePO₄ chemistry offers a long lifespan of over 6,000 cycles, delivering dependable performance and cost-effective energy storage.
Contact Us
Technical Parameters
Product Parameters

Usage scenarios

Technical Data

MODEL

25.6V 100AH

Nominal Voltage

25.6V

Nominal Capacity

100Ah

Nominal Energy

2560Wh

Battery Type

LFP

Cycle Life

6000(80%DOD,0.5C.25℃)

Maximum Number of Units in Parallel

15 units

Charge Cut-off Voltage

29.2V

Discharge Cut-off Voltage

21.6V

Standard Charge Current

50A

Maximum Charge Current

100A

Standard Discharge Current

50A

Maximum Discharge Current

100A

Dimensions

405*380*193mm

Weight

31.5kg

Communication

CAN/RS485/RS232

Charging Temperature Range

0℃-55℃

Discharging Temperature Range

-20℃-60℃

Cooling Method

Natural Cooling

Protection

Built-in Smart BMS

IP Rating

IP30

Warranty

5 Years

Certification

MSDS, UN38.3, CE-EMC, IEC62619

Let's a Talk
Keep in touch with us
Product Application
Applicable Fields
Read More
  • OEM/ODM Solutions

    OEM/ODM Solutions

  • Residential Off-Grid Energy Storage

    Residential Off-Grid Energy Storage

  • Residential Grid-Tied Energy Storage

    Residential Grid-Tied Energy Storage

  • Commercial & Industrial Energy Storage Solutions

    Commercial & Industrial Energy Storage Solutions

About Us
APsolway Technology
Altenergy Power System Inc. is a high-tech manufacturer specializing in power electronics. The company is publicly listed on the SSE STAR Market (Stock Code: 688348). Headquartered in Jiaxing, Zhejiang Province, it also operates a production base in the same city. To support its global reach, the company has established branches and subsidiaries in key international markets, including Texas (USA), Leipzig (Germany), Amsterdam (Netherlands), Brisbane (Australia), Paris (France), Mexico, and other major regions. Zhejiang APsolway Technology Co., Ltd., a subsidiary of Altenergy Power System Inc., focuses on residential energy storage solutions. As 25.6V 100Ah Smart Control Wall-Mounted LiFePo4 Battery Manufacturers, the company is dedicated to the research, development, and production of hybrid and off-grid inverters, offering single-phase, three-phase, and split-phase models ranging from 3 to 20 kW.
As a leading provider of residential solar energy storage solutions, 25.6V 100Ah Smart Control Wall-Mounted LiFePo4 Battery Factory in China, APsolway stands out with innovative designs and a range of unique, differentiated features. We also offer OEM/ODM services and can deliver fully customized solutions to meet our customers’ specific needs.
