Usage scenarios

Technical Data
|
MODEL |
51.2V100Ah |
51.2V100Ah*2 51.2V100Ah*3 |
51.2V100Ah*4 |
51.2V100Ah*5 |
51.2V100Ah*6 |
|
|
Standard voltage |
51.2V |
|||||
|
Single-module capacity |
100Ah |
100Ah |
100Ah |
100Ah |
100Ah |
100Ah |
|
Rated capacity |
5.12KWh |
5.12KWh*2 |
5.12KWh*3 |
5.12kWh*4 |
5.12KWh*5 |
5.12kWh*6 |
|
Working voltage |
43.2-57.6V |
|||||
|
Standard charging current |
50A |
50A*2 |
50A*3 |
50A*4 |
50A*5 |
50A*6 |
|
Standard discharge current |
100A |
100A*2 |
100A*4 |
100A*4 |
100A*5 |
100A*6 |
|
Suggested DOD |
80% |
|||||
|
Cycle life |
>6000 cycles |
|||||
|
Ingress protection |
IP 21 |
|||||
|
Discharge operating temperature |
-20℃-50℃ |
|||||
|
Charging operating temperature |
0℃-45℃ |
|||||
|
Maximum parallel connection |
15 |
|||||
|
Communication |
RS232/CAN/RS485(Bluetooth MIFI is optional) |
|||||
|
Display |
LCD Display |
|||||
|
Quality guarantee |
5years |
|||||
|
Certificate |
UN38.3/MSDS/CE/ROHS/FCC |
|||||
|
Net weight(kg) |
45.8+14.2(Base) |
45.8+14.2(Base) |
45.8+14.2(Base) |
45.8+14.2(Base) |
45.8+14.2(Base) |
45.8+14.2(Base) |
|
Gross weight(kg) |
53.2+18.7(Base) |
53.2*2+18.7(Base) |
53.2*3+18.7(Base) |
53.2*4+18.7(Base) |
53.2*5+18.7(Base) |
53.2*6+18.7(Base) |
|
Dimension (mm) |
550*500*(178+105) |
550*500*(178*2+105) |
550*500*(178*3+105) |
550*500*(178*4+105) |
550*500*(178*5+105) |
550*500*(178*6+105) |

OEM/ODM Solutions

Residential Off-Grid Energy Storage

Residential Grid-Tied Energy Storage

Commercial & Industrial Energy Storage Solutions
Read More
51.2V 100Ah BMS Protection Wall-Mounted LiFePo4 Battery
Read More
48V/51.2V 100Ah/200Ah/300Ah Rack/Cabinet Type Battery
Read More
Stackable Battery Lithium Iron Phosphate Battery
Read More

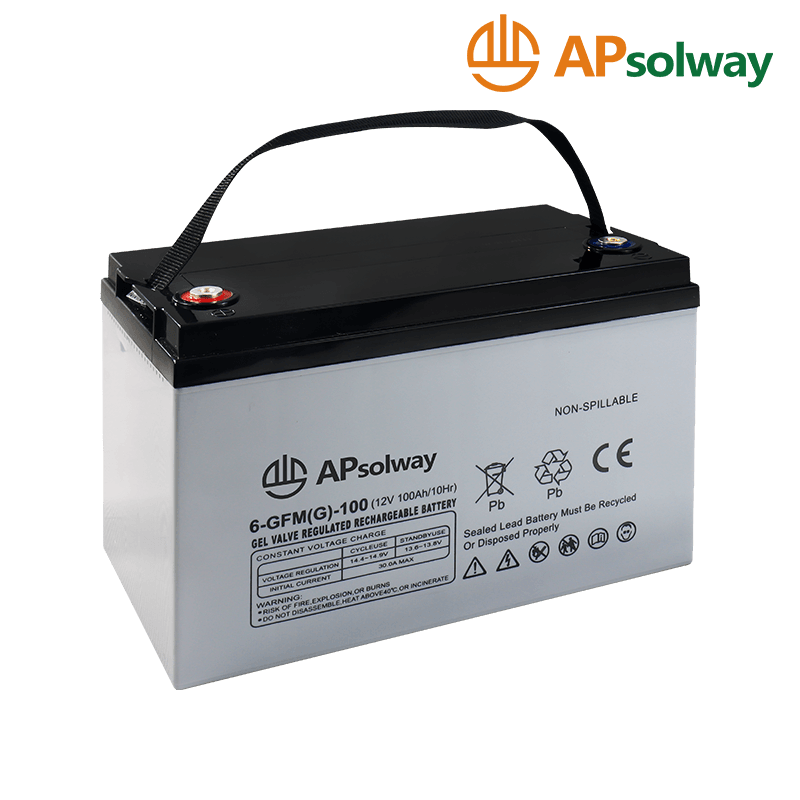

6-GFM(G)-100 12V 100Ah/10Hr Gel Valve Regulated Lead-Acid Battery
Read More
25.6V 100Ah Smart Control Wall-Mounted LiFePo4 Battery
Read More

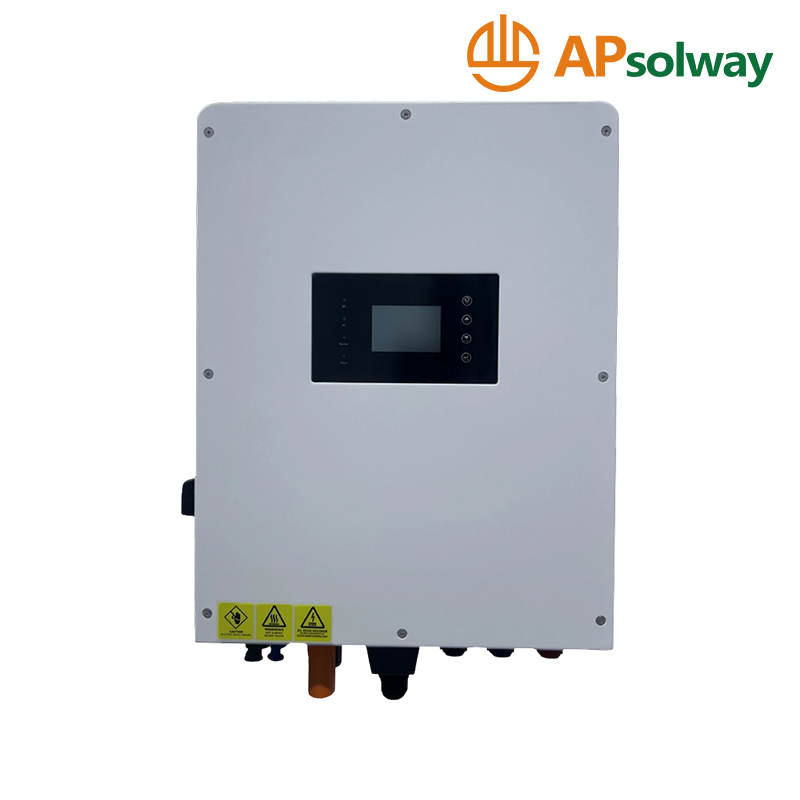

HCC01-TM-0060/0080/0100/0120H-EP 48V Low Voltage Battery Three Phase Hybrid Inverter
