Custom Stackable Battery Lithium Iron Phosphate Battery
Home / Products / Solar Battery / Lifepo4 Batteries / Stackable Battery / Stackable Battery Lithium Iron Phosphate Battery
  • Stackable Battery Lithium Iron Phosphate Battery
  • Stackable Battery Lithium Iron Phosphate Battery
  • Stackable Battery Lithium Iron Phosphate Battery
  • Stackable Battery Lithium Iron Phosphate Battery
  • Stackable Battery Lithium Iron Phosphate Battery
Stackable Battery

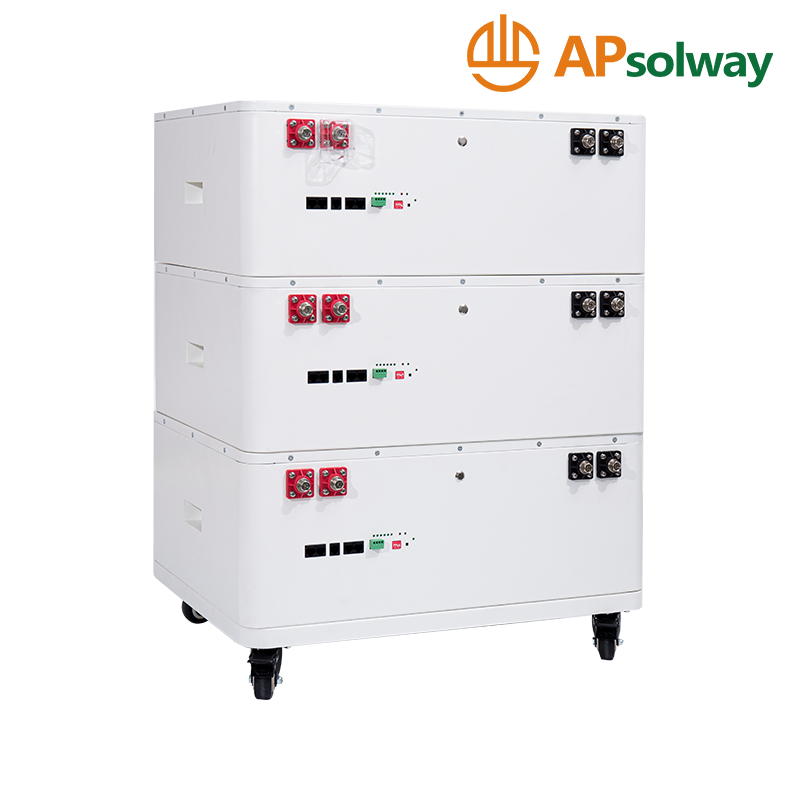

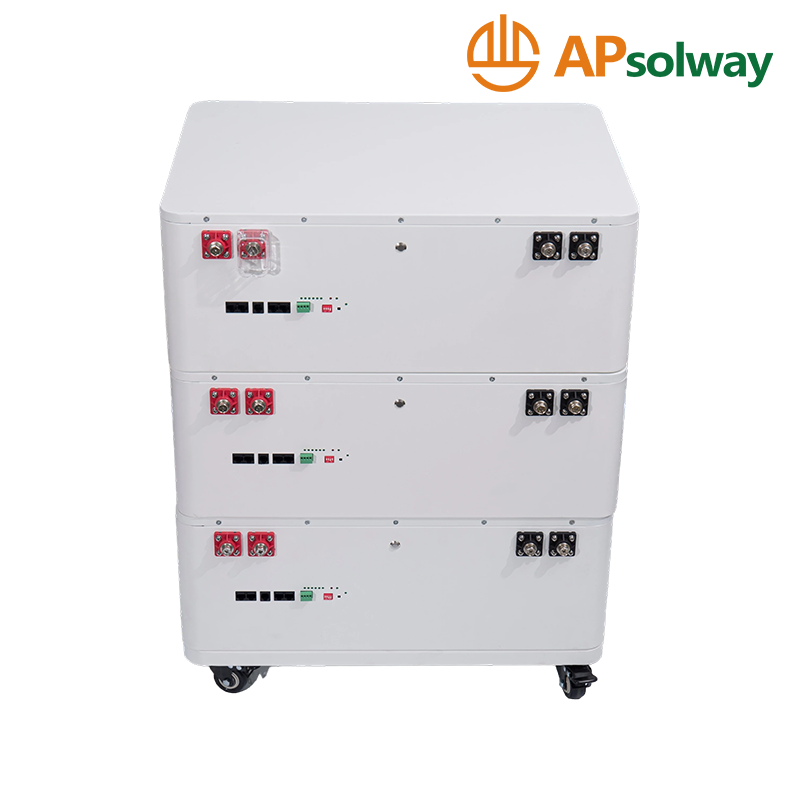

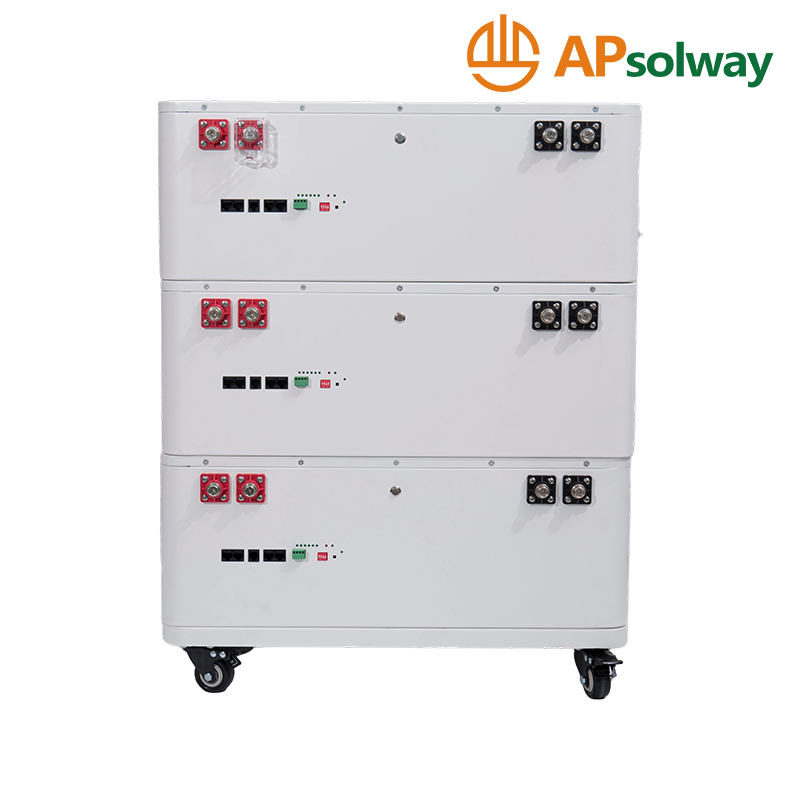

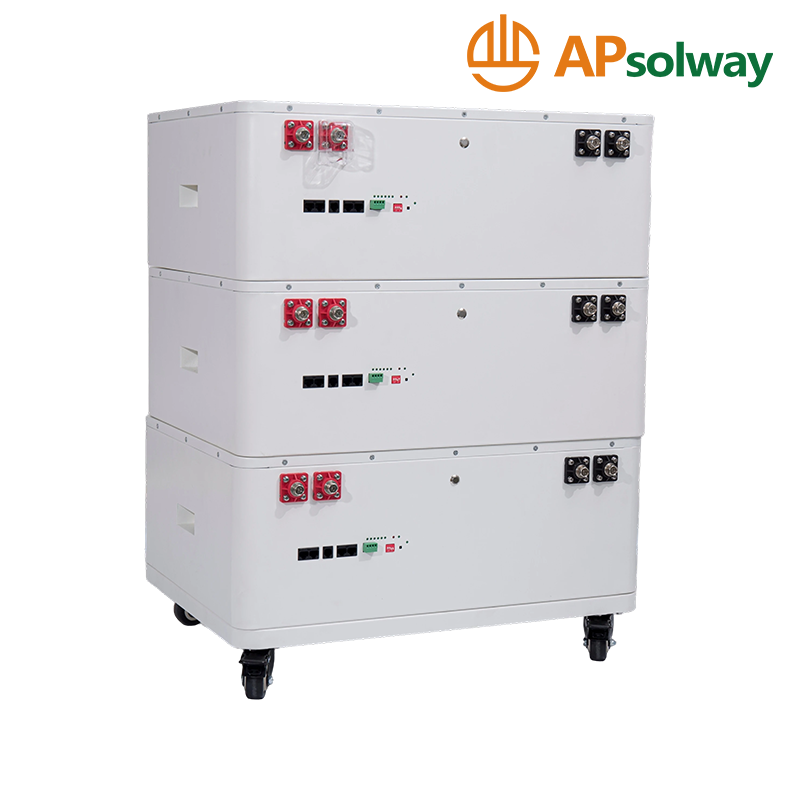

Stackable Battery Lithium Iron Phosphate Battery

  • Features & Benefits
    1. High cycle life
    >6000 cycles @80% DOD for effectively lower total cost of ownership

    2. Longer service life
    Low-maintenance batteries with stable chemistry. Easily monitor state of charge (SOC) of smart models.

    3. Built-in circuit protection
    Battery Management Systems (BMS) are incorporated against abuse.

    4. Better storage
    Up to 6 months thanks to its extremely low self-discharge (LSD) rate and no risk of sulphation.

    5. Quickly recharge
    Save time and increase productivity with less downtime thanks to superior charge/discharge efficiency.

    6. Extreme heat tolerance
    Suitable for use in a wider range of applications where ambient temperature is unusually high: up to +60°C.

    7. Lightweight
    Lithium batteries provide more Wh/Kg while also being up to 1/3 the weight of its SLA equivalent.

  • Applications
    Lithium Iron Phosphate can be used in most applications that use
    Lead Acid, GEL or AGM type batteries. Suitable applications include:
    • Caravan
    • Marine
    • Golf Car
    • Buggies
    • Solar Storage
    • Remote Monitoring
    • Switching applications and more

  • Cautions
    • Do NOT short circuit, crush or disassemble.
    • Do NOT heat or incinerate.
    • Do NOT immerse in any liquid.
    • Store at 50% capacity. Recharge every 3 months. The storage area should be clean, cool, dry and ventilated.
Contact Us
Technical Parameters
Product Parameters

ELECTRICAL PERFORMANCE

Nominal Voltage

51.2V

Nominal Capacity

100 Ah

Capacity @20A

300 min

Energy

5120 Wh

Resistance

≤20 mΩ@50%SOC

Self Discharge

<3%/Month

Cells

LFP Cell 3.2V

CHARGE PERFORMANCE

Recommended Charge Current

20 A

Maximum Charge Current

100 A

Charge Cut-Off Voltage

58.4 V

Reconnect Voltage

>56V

Balancing Voltage

<54.4V

Protocol(optional)

RS485//CAN

LED display

(Optional)

DISCHARGE PERFORMANCE

Continuous Discharge Current

100 A

Maximum Continuous Discharge Current

105-110 A

Peak Discharge Cut-Off Current

300 A(5~15 ms)

Discharge Cut-Off Voltage

40V

Reconnect Voltage

>44.8V

Short Circuit Protection

200～800 μs

MECHANICAL PERFORMANCE

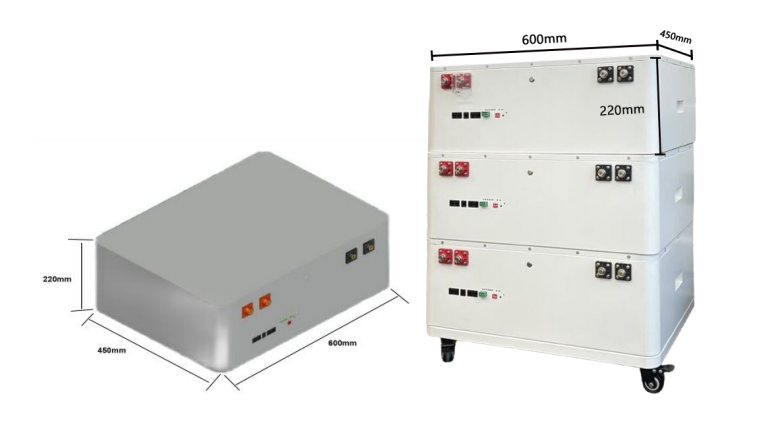

Dimension (L×WxH)

600×450×220 mm

Approx.Weight

About 43±2kg

Terminal Type

M8

Terminal Torque

80～100 in-Ibs(9～11 N-m)

Case Material

Metal

Enclosure Protection

IP20

TEMPERATURE PERFORMANCE

Discharge Temperature

-4～140 F(-20～60 ℃)

Charge Temperature

32～113 F(0～55℃)

Storage Temperature

23～95 °F(-5～35℃)

High Temperature Cut-Off

149F(65℃)

Reconnect Temperature

118F(48℃)

COMPLIANCE

Certifications

CE

UN38.3

UL1973&IEC62619

Shipping Classification

UN 3480, CLASS 9
