Custom APS6500-48 6.5kW Single Phase Off-Grid Inverter
Home / Products / Solar Inverter / Off Grid Inverter / APS Series Off-Grid Inverter / APS6500-48 6.5kW Single Phase Off-Grid Inverter
  • APS6500-48 6.5kW Single Phase Off-Grid Inverter
  • APS6500-48 6.5kW Single Phase Off-Grid Inverter
APS Series Off-Grid Inverter

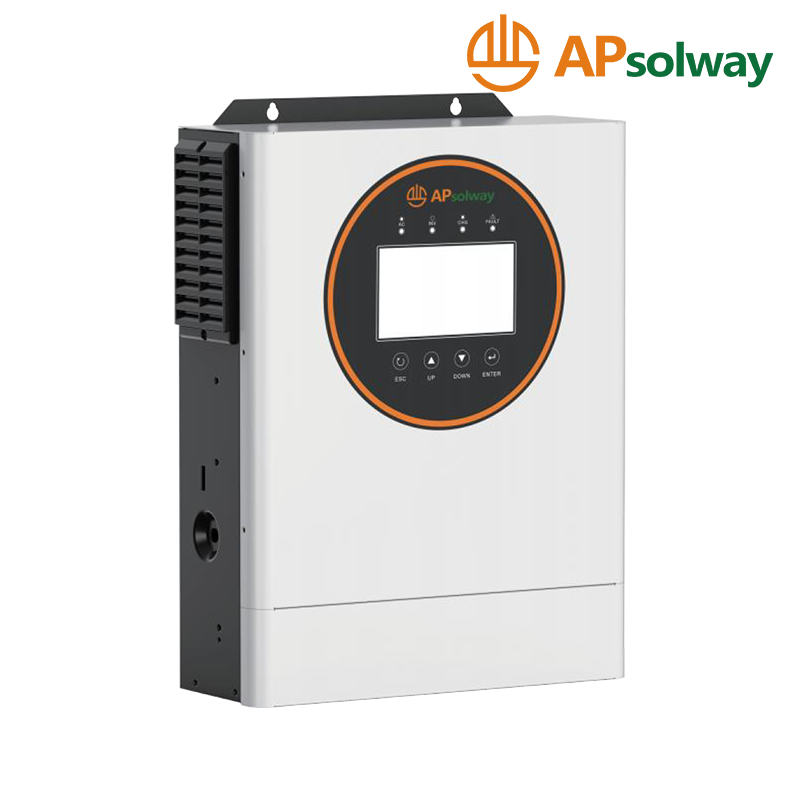

APS6500-48 6.5kW Single Phase Off-Grid Inverter

  • APS6500-48 6.5kW Single-Phase Off-Grid Inverter features a rated output power of 6.5kW and a peak surge capacity of up to 13kVA, enabling it to reliably drive highly inductive loads such as air conditioners, large refrigerators, and power tools. Utilizing a pure sine wave output, it supports 208/220/230/240V voltage systems, ensuring high-quality and compatible power delivery. Designed as a 48V system solution, it achieves a peak efficiency of 93% in battery mode, effectively minimizing energy losses during the conversion process.
  • In terms of solar energy utilization, the APS6500-48 delivers exceptional performance. It features a built-in 120A MPPT solar charge controller, supporting a maximum PV input power of 9000W. Its wide MPPT operating voltage range (60–450V) and a maximum input current of up to 28A allow it to be compatible with the majority of high-power solar panels currently available on the market. This model offers full compatibility with both lithium-ion and lead-acid batteries, featuring a lithium battery activation function and the capability to communicate with the battery's BMS via RS485. Furthermore, the device supports dual AC outputs and grid-tie functionality (Feed-in to Grid); combined with its built-in Wi-Fi monitoring module, users can achieve intelligent, round-the-clock energy management.
Contact Us
Technical Parameters
Product Parameters
MODEL APS6500-48
AC Input
Rated Input Voltage(VAC) 208/220/230/240;L+N+PE
Voltage Range (VAC) 90~280±3(normal mode);170~280±3(UPS mode)
Frequency(Hz) 50/60(Auto Adaptive)
AC Output
Rated Capacity (kW) 6.5
Surge Power (kVA) 13
Voltage(VAC) 208/220/230/240
Power Factor(PF) 1
Frequency 50/60Hz±0.1%
Switch Time(ms) 10(normal mode)/10(UPSmode)
Wave Form Pure Sine Wave
Overload Capacity(Battery Mode) 10min@102%-120%Load,1min@120%-150%Load
10S@150%-200%Load,5s@>200%Load
Max.Efficiency (Battery Mode) 93%@48VDC
Parallel Operation Support NA
Charger (PV/AC)
Solar Charger Type MPPT
Max PV input current/power 28A/9000w
MPPT Range@Operating Voltage (VDC) 60-450
Max PV Open Circuit Voltage (VDC) 520
Max PV Charge Current(A) 120
Max AC Charge Current(A) 120
Max. Charge Current (PV+AC)(A) 120
Battery
Rated Voltage(VDC) 48
Floating Charge Voltage(VDC) 54
Overcharge Protection(VDC) 61
Battery Type Lithium and Lead-acid
Interface
HMI LCD
Interface RS485/USB/Dry Contact/CT/Meter
Monitoring WiFi(built-in)
General Data
Ingress Protection IP43
Warranty 2 years
Operating Temperature -10℃-50℃
Relative Humidity 5%~95%(Non-condensing)
Storage Temperature -15℃-60℃
Net Weight(kg) 10.7
Dimensions(W*H*D) 514*338*136.5mm
Max. Operating Altitude 4000m(Derating above 1000m)

Product specifications are subject to change without further notice.
