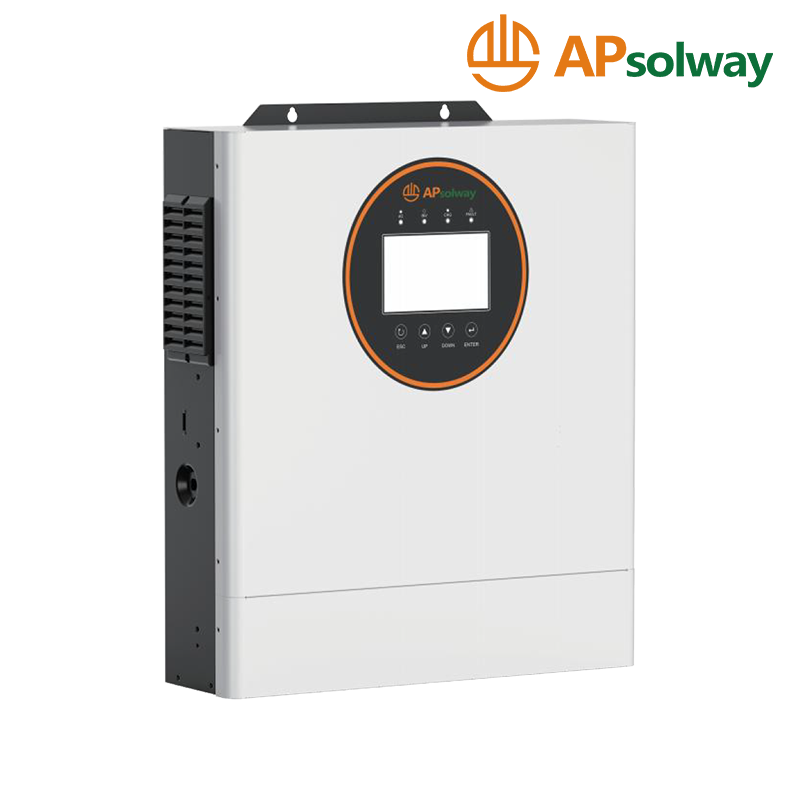

APS10000-48 1.2kW Single Phase Off-Grid Inverter

The APS10000-48 is a high-performance off-grid energy core launched by APsolway, designed specifically for high-power residential and commercial applications. As a high-capacity 10kW inverter, it boasts a peak surge power of up to 20kVA, enabling it to effortlessly drive heavy loads such as high-power motors and central air conditioning systems. One of this model's most notable features is its large 5-inch LCD display, which allows users to intuitively monitor system status and easily configure various parameters.
Regarding PV energy conversion, the APS10000-48 features a built-in, robust 160A solar charge controller and employs a dual MPPT input design, supporting a maximum PV array input capacity of 10,000W. Its MPPT operating voltage range spans 60–450 VDC, ensuring highly efficient energy harvesting across a wide variety of lighting conditions.
This device supports 48V battery systems and is fully compatible with both lithium-ion and lead-acid batteries. It features a built-in lithium battery activation function and an RS485 communication interface, enabling deep integration and collaborative operation with battery management systems (BMS). Furthermore, it offers dual AC outputs and grid-tie capabilities, supporting multiple output priority modes. Designed with durability in mind, the unit features a removable dust filter cover, weighs 12.4 kg, and includes a built-in Wi-Fi monitoring module, allowing users to perform 24/7 remote intelligent management via a dedicated mobile app.

Product specifications are subject to change without further notice.
